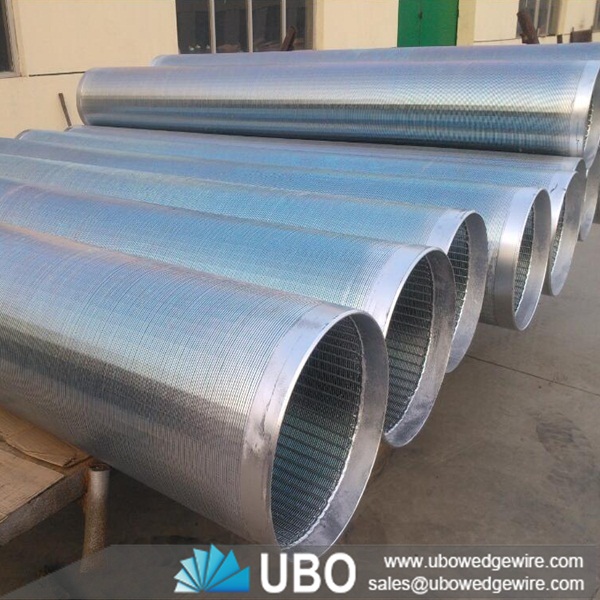

wedge wire screen for refining petrochemical

Product Code: 2434
Category:Wedge Wire Screen Cylinders
Material:Low Carbon, Stainless Steel( 304,304L,316 etc.),Low Carbon Galvanized (LCG)
Properties:wedge wire screen
Application:refining petrochemical

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of wedge wire screen for refining petrochemical


Wedge wire screen for refining petrochemical are made from V shaped profile wire , which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process . This spacing gives passage for water to enter .The entire process is completed on fully computerizes machines . The pitch of winding gives different spacing between two adjacent turns of wire.

Advantages of wedge wire screen for refining petrochemical

wedge wire screen for refining petrochemical

Reduced consumption of treated water for backwashing

Savings in filter height and volume

No maintenance, repair or shutdown

No need for suspended filter floor

Application of wedge wire screen for refining petrochemical

This filter is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chem ical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.

wedge wire screen for refining petrochemical

Specification of the wedge wire screen for refining petrochemical


wedge wire screen for refining petrochemical

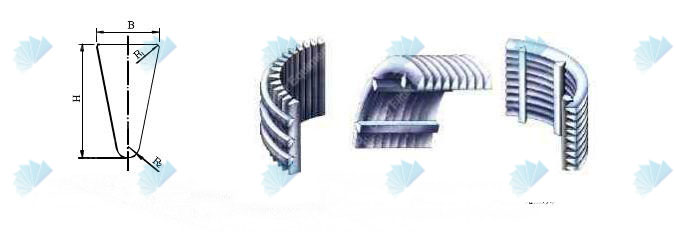

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

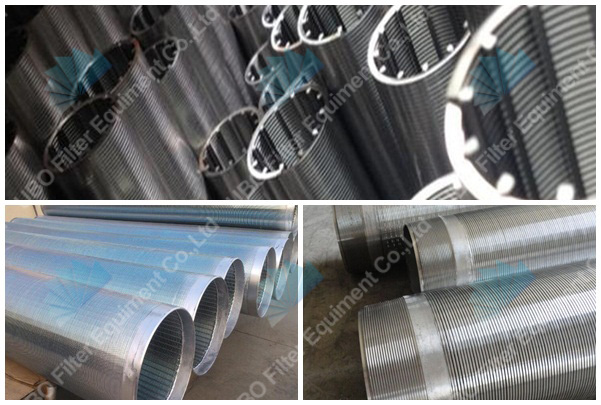

Production And Sales of wedge wire screen for refining petrochemical


wedge wire screen for refining petrochemical
