wedge wire screen for purified wanter treatment

Product Code: 2815
Category:Wedge Wire Screen Cylinders
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Screen
Application:water treatment, Sugar,Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of wedge wire screen for purified wanter treatment

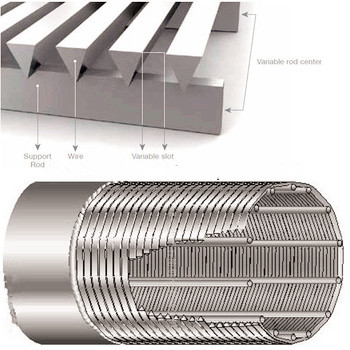

 The Wire Wrapped Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure.

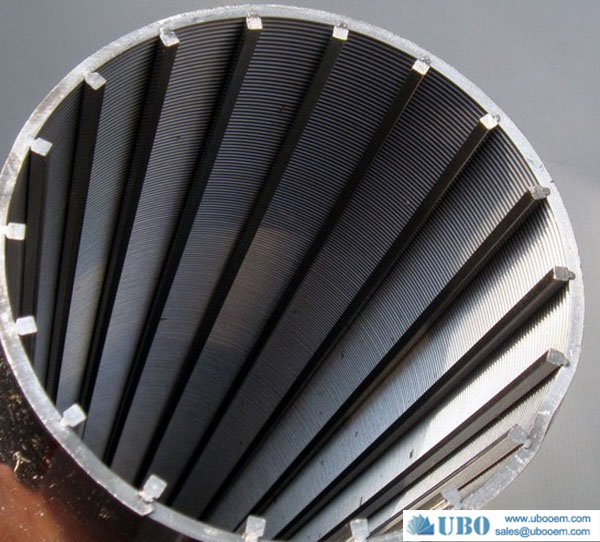

wedge wire screen for purified wanter treatment

Product Feature for wedge wire screen for purified wanter treatment:

1.Up to 60% or more free open entry area
2.Installation possible to depths of 2000 m
3.Smaller diameters can be drilled as gravel packing is not necessarily required
4.The slogs can't be clogged due to wedgeshaped surface wires
5.high quality , lower price , fastest delivery

Application for wedge wire screen for purified wanter treatment:

deep well , water well , geothermal well , tube well , oil and gas exploration well , irrigation well , resident and industrial using well

Product Specification/Models for wedge wire screen for purified wanter treatment:

The well point screen for dewatering is an incorporate.
These incorporate a self Jetting head with a non-return ball valve, a stainless steel slotted filter screen, a G.I inner drain pipe and a top coupling which threads to standard 1 ½" (40 mm) riser pipe.
The serrations on the jet head render penetration, even through hard grounds, easy.
Specially designed slots of stainless steel screen, allows maximum water flow with minimum pressure drop and prevents passage of even fine material.
The screen eliminates clogging due to corrosion or deterioration due to chemical action.
It has a reverse self cleaning design to void choking. If you have interest in our stainless steel well point screen,please feel free to contact us.

Characteristics for wedge wire screen for purified wanter treatment:

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Specification of the wedge wire screen for purified wanter treatment

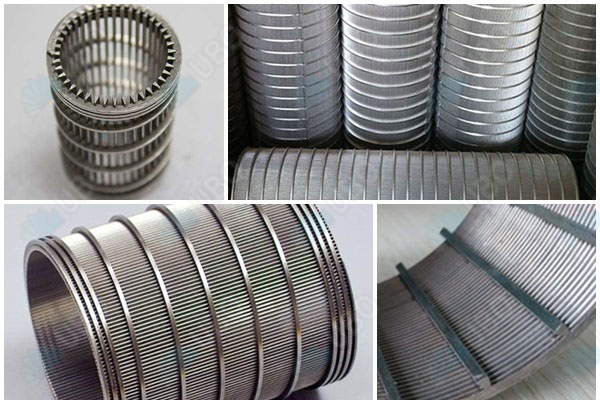

wedge wire screen for purified wanter treatment

 V-Wire Wrap Screen
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Production And Sales of wedge wire screen for purified wanter treatment

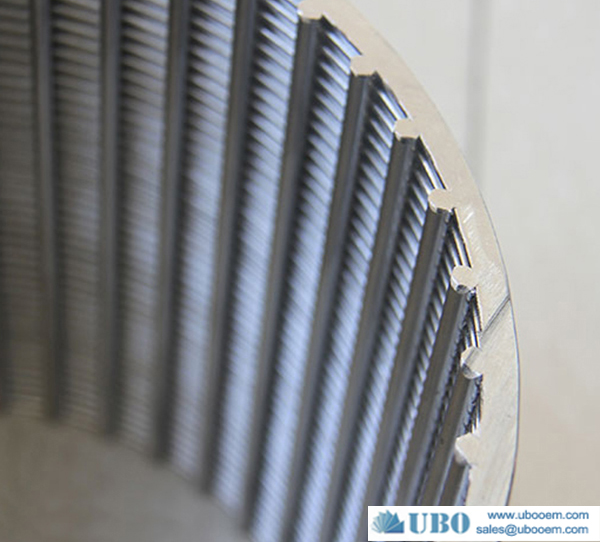

wedge wire screen for purified wanter treatment
