wedge wire screen for microfiltration system

Product Code: 2438
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,316,316l,320,Hastelloy C
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Email:sales@ubooem.com

Description of wedge wire screen for microfiltration system

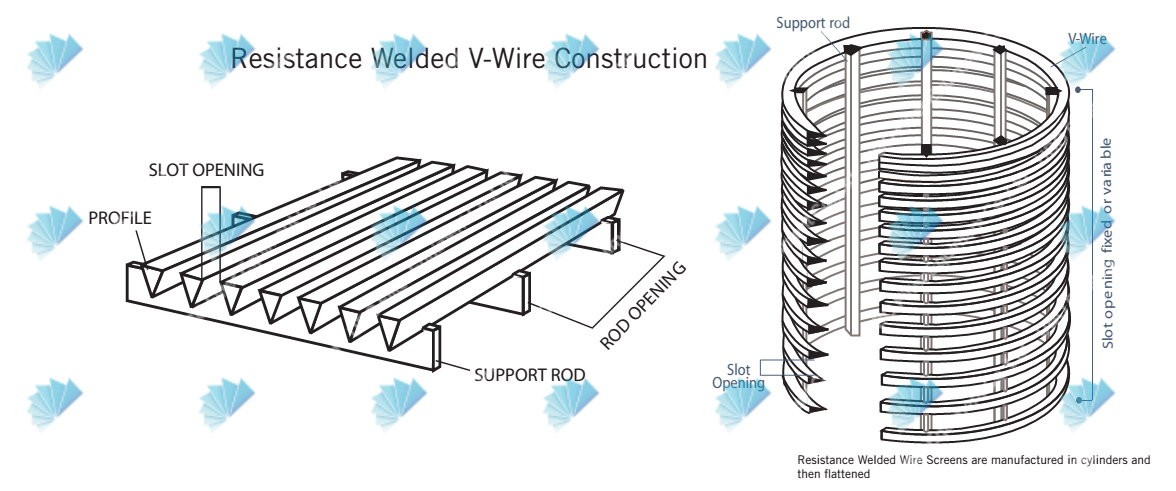

wedge wire screen for microfiltration system is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.

wedge wire screen for microfiltration system

Applicationsof wedge wire screen for microfiltration system

The wedge wire screen cylinders can be used as rotary screens.
Wedge wire screen cylinders are widely used in the mine, coal, mineral and other applications for heavy duty and high load filtering, sizing and screening.

Characteristics of wedge wire screen for microfiltration system

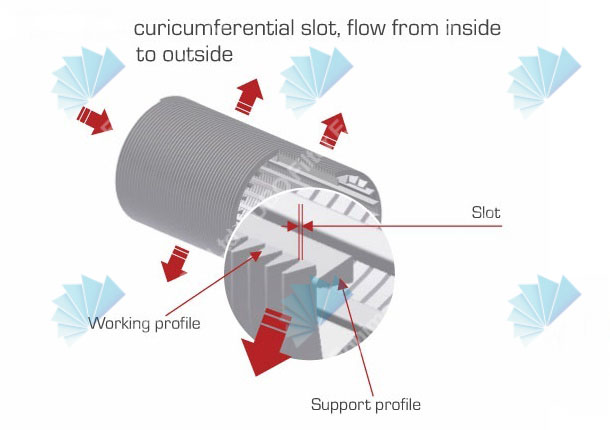

The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

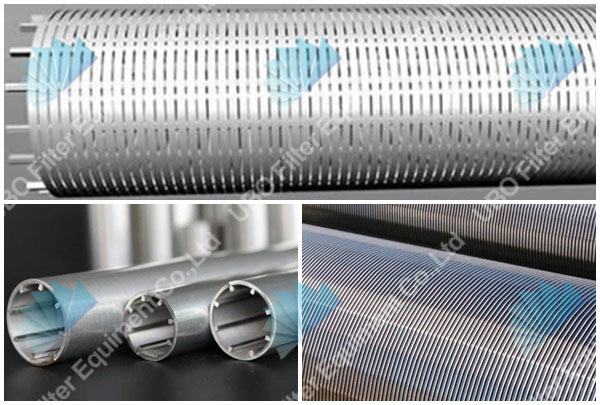

wedge wire screen for microfiltration system

Specification of the wedge wire screen for microfiltration system


wedge wire screen for microfiltration system



Wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length up to 6m
Diameter from 25mm to 1200mm.
End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of wedge wire screen for microfiltration system


wedge wire screen for microfiltration system
