wedge screen panels

Product Code: 2857
Category:Sieve Plate Screen
Material:Stainless steel 316L
Properties:Wedge Wire Screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of wedge screen panels


wedge screen panels are used in a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge screen panels construction. wedge screen panels can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applications.

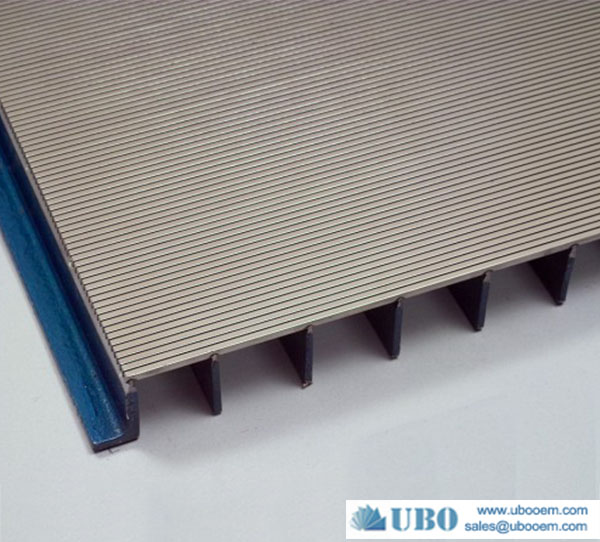

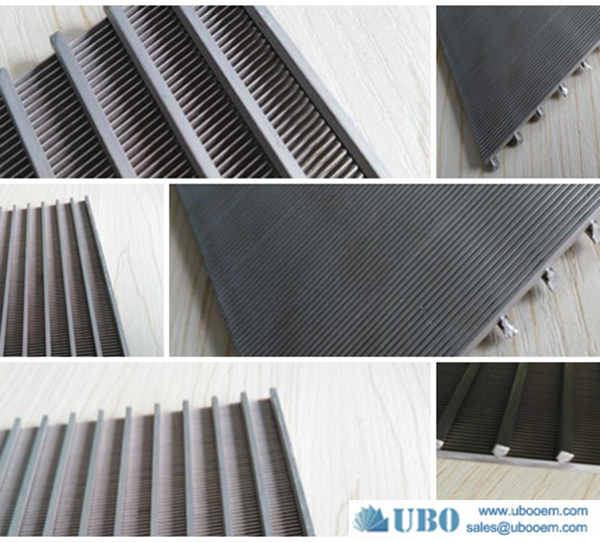

wedge screen panels

Application of wedge screen panels

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification

Characteristic of wedge screen panels

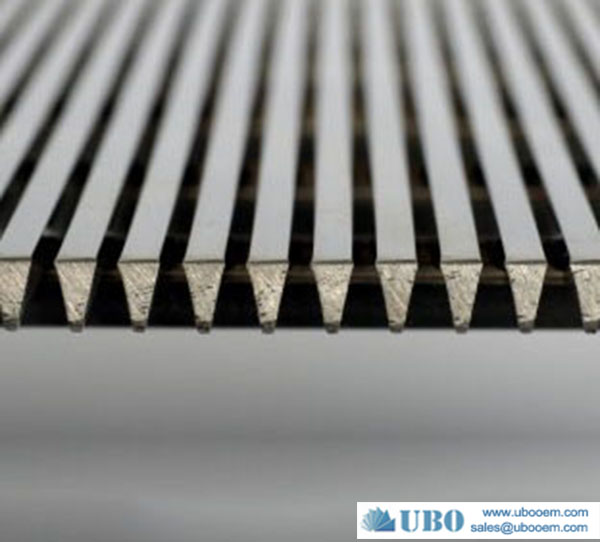

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

Specification of the wedge screen panels


Stainless steel wedge wire screen for filtration
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Width:
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

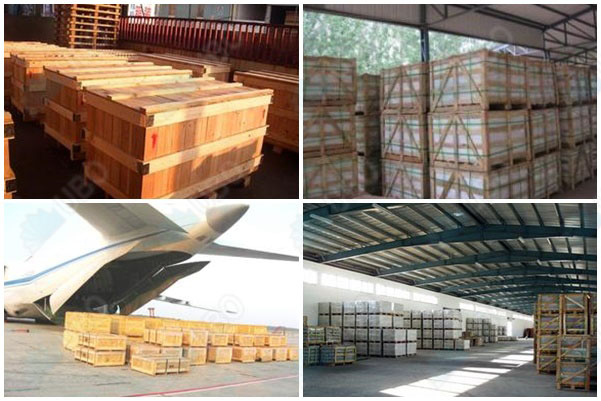

Production And Sales of wedge screen panels


wedge screen panels
