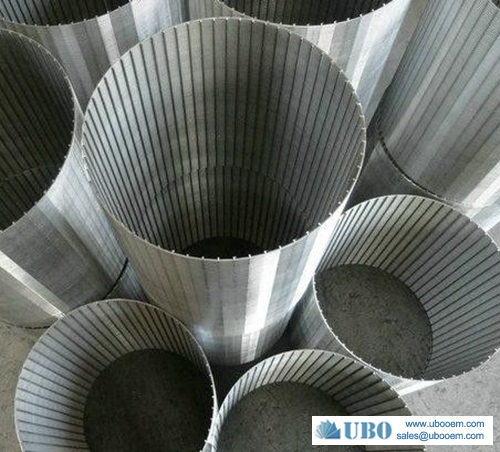

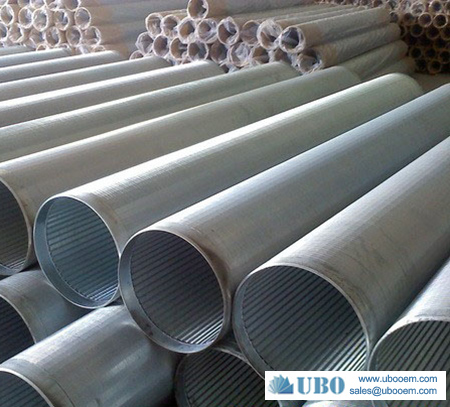

water well screen pipe

water well screen pipe

Material: Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Weaving and characteristics: The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire(V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. In the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, long life span, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Length: lengths up to 6 meters.

Diameter ranging from 1 inch -----45 inch.

Slot size: 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

End connection: Plain ends of threaded or welded cap.

Open area up to 60%.

specification (wedge wire ):

specification (support rod):

The Wedge Wire Products Production Process:
