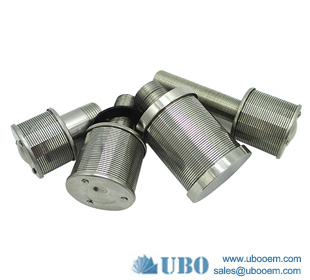

water slot well screen filter/ wedge wire screen filter

Product Code: 3405
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of water slot well screen filter/ wedge wire screen filter

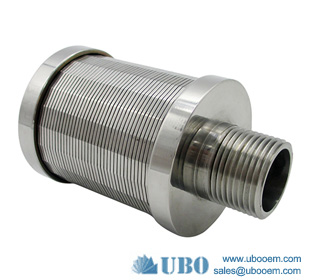

Water slot well screen filter, also called wedge wire screen nozzle. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The wedge wire screen filter is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

water slot well screen filter/Wedge Wire wedge wire screen filterwater slot well screen filter/Wedge Wire wedge wire screen filter



Feature of water slot well screen filter/Wedge Wire wedge wire screen filter



-- High strength;

-- Good resistance to abrasion and corrosion;

-- High rigidity;

-- Good in filtration and fluidity;

-- Flat panel surface;

-- Fairly well precision and roundness;

-- Long work time.

-- Easy to clean and back wash;

-- Uniform gap.



Structure of water slot well screen filter/Wedge Wire wedge wire screen filter



1) We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.

2) The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.

3) After work for a period of time, the filter can be back flush.It can use for many times.
Filtering direction from outside to inside (FOTI)



Application of water slot well screen filter/Wedge Wire wedge wire screen filter



Wedge wire Screen Filter nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration.The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.

water slot well screen filter/Wedge Wire wedge wire screen filterwater slot well screen filter/Wedge Wire wedge wire screen filter

Specification of the water slot well screen filter/ wedge wire screen filter


stainless steel slimline nozzle internal filters

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread according to requirement

Production And Sales of water slot well screen filter/ wedge wire screen filter
