trommel screens manufacturer

Product Code: 2957
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of trommel screens manufacturer

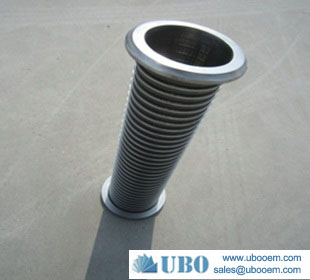

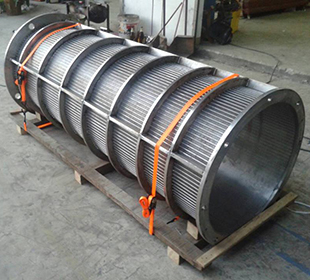

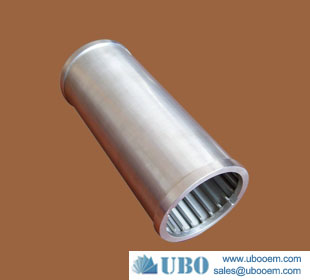

Trommel screens manufacture is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.

trommel screens manufacture



Characteristics for trommel screens manufacturer:



1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits



Application for trommel screens manufacturer:



The wedge wire cylinders are widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.



Technical parameter for trommel screens manufacturer:



Wedge wire cylinder diameter is from 25mm to 1500mm.
Wedge wire cylinder length is from 0.3m to 12m.
For wedge wire cylinder, profile wire is generally triangle wire;
support rod includes triangle wire,round rod,flat wire etc

Specification of the trommel screens manufacturer


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

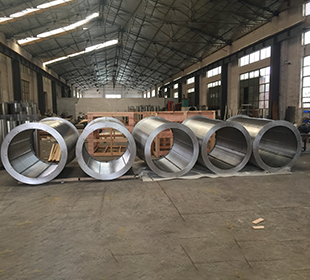

Production And Sales of trommel screens manufacturer


trommel screens manufacture
