steel water well screen Environmental Water Treatment Technology

Product Code: 2953
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of steel water well screen Environmental Water Treatment Technology


The advanced wire wrapped screen technology provides superior weld strength and accurate slot openings. The accurate V-shaped wires provide free flow and optimal sand control.

A large number of support rods increases tensile strength and achieves rounder and stronger screens.
The screen jacket is fully pickled and passivated for maximum corrosion resistance.

steel water well screen Environmental Water Treatment Technology


Usages for steel water well screen Environmental Water Treatment Technology:


The stainless steel johnson water well screen pipe is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.


Advantages of steel water well screen Environmental Water Treatment Technology:


When compared to conventional slotted pipe, Water Well Screens have superior open area due to their continuous slot openings. The benefits of which will :
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.


Features of steel water well screen Environmental Water Treatment Technology:

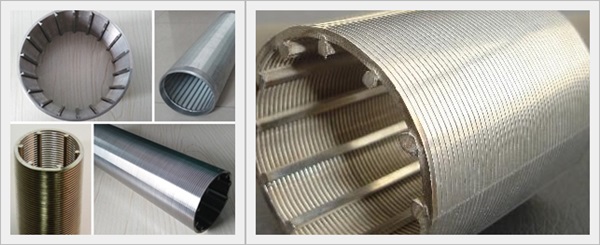

1) They consist of V-shape or wedge shape profile wire and the longitudinal support rods.

2) The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.

3) Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

Specification of the steel water well screen Environmental Water Treatment Technology


Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Production And Sales of steel water well screen Environmental Water Treatment Technology


steel water well screen Environmental Water Treatment Technology
