sell Continuous Slot V Wire Water Well Screen

Product Code: 3044
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of sell Continuous Slot V Wire Water Well Screen


Continuous Slot V Wire Water Well Screen also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance. The stainless steel cylindrical wedge wire screen is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

sell Continuous Slot V Wire Water Well Screen



Applications for Continuous Slot V Wire Water Well Screen:



Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.



Advantages for Continuous Slot V Wire Water Well Screen:



-- A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

-- A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening.

-- Wedge wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

-- Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

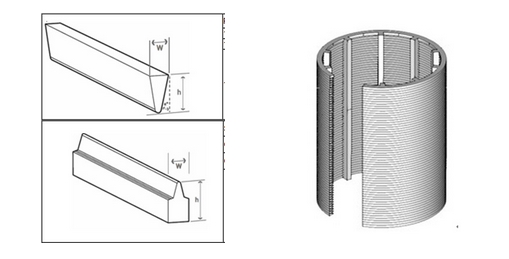

Specification of the sell Continuous Slot V Wire Water Well Screen


sell Continuous Slot V Wire Water Well Screen

wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters

Diameter

  from 25mm to 1200mm.
