media retention nozzles

Product Code: 2190
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:water strainer&nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of media retention nozzles

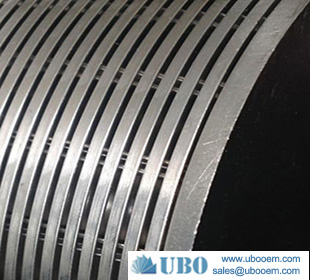

     Stainless steel filter nozzles manufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. Screen sections are usually twenty feet long. Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.

Application for media retention nozzles:

Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages for media retention nozzles:

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

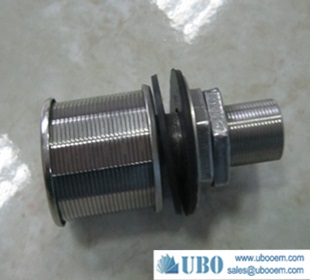

media retention nozzles

Specification of the media retention nozzles


media retention nozzles



Catalogue Item Slots mm Thread ΦAmm Thread length L1mm< Shaft L2 mm L3 mm
Type B 0.05, 0.1, 0.2, 0.3 , 0.5, 1.0 1¼"WW 32 25,30,45 80,110,
40,200,
250,300,
350,…
45,50,55,
 60,70,80
M30 30*3.5 30
G 3/4" 26.5 20,45,+5+5...
1"WW 25.4 20,45,+5+5...
M24 24 20,45,+5+5..

Production And Sales of media retention nozzles


media retention nozzles
