| Category: | Wedge Wire Screen Cylinders |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request |
| Properties: | wedge wire screen |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |

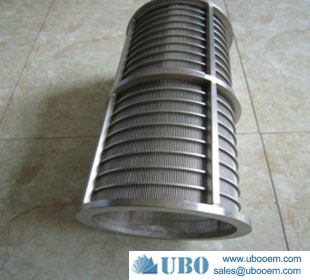

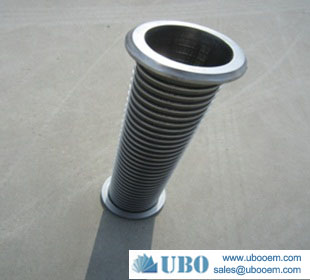

industrial SS screens for sugar centrals is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire). The welded ring sand control wedge wire screen pipe have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.
wedge wire screen cylinders can be successfully used in wide range of applications in the field of process engineering such as sugarcane juice filtration, waste water treatment, crude oil and natural gas production and vessel internal solving problems of solid/liquid and solid/gas separation, de-watering, sizing, filtration of oils, gases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.
1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation.
3) Reduce the abrasion of the pump.
|
Size (inch) |
O.D (mm) |
Slot (inch) |
Collapse Strength (Psi) |
Tensile Weight (Ton) |
Wrap(thick*deep) (mm) |
Rods (mm) |
| 4 | 117 | 0.04 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4 | 114.3 | 0.04 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6 | 168.3 | 0.04 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8 | 219.1 | 0.01 | 399 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 8 | 219.1 | 0.02 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 8 | 219.1 | 0.04 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10 | 273.1 | 0.01 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.02 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.04 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
