galvanized Wedge Wire v wire water well screen for drilling water

Product Code: 3096
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Email:sales@ubooem.com

Description of galvanized Wedge Wire v wire water well screen for drilling water


Galvanized Wedge Wire v wire water well screen for drilling water are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

galvanized Wedge Wire v wire water well screen for drilling water

Advantage of galvanized Wedge Wire v wire water well screen for drilling water

High strength
High hardness
Abrasion resistant
Corrosion resistant
Uniform aperture
Good transfusion
Easy to clean

Application of galvanized Wedge Wire v wire water well screen for drilling water

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Specification of the galvanized Wedge Wire v wire water well screen for drilling water


galvanized Wedge Wire v wire water well screen for drilling water

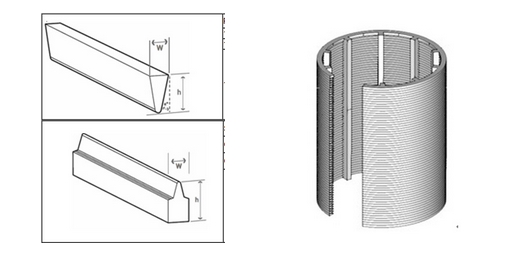

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
