filter nozzles water treatment system

Product Code: 2558
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,316,316L
Properties:wedge wire screen
Application:Used for the industrial wastewater treatment plants,dewatering equipment

Email to Us Start Order


Email:sales@ubooem.com

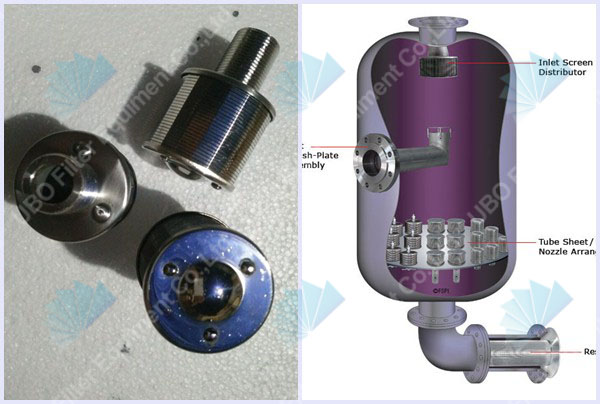

Description of filter nozzles water treatment system


The filter nozzles water treatment systems are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen.It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.

V-shaped wire around the plate water cap for chemical industry is made up of stainles steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.

Application of filter nozzles water treatment system

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Advantages of filter nozzles water treatment system

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

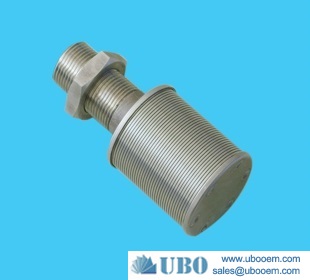

filter nozzles water treatment system

Specification of the filter nozzles water treatment system


filter nozzles water treatment system

No. Slot Dimension Flow area/mm2
(Slot:0.2mm)
D H L M L1
1 0.2-0.5 45 30 180 25 According to custom’s request 330
2 45 40 190 25 450
3 53 40 190 30 500
4 53 50 200 30 630
5 53 40 235 32 500
6 57 40 190 32 605
7 57 50 200 32 750

Production And Sales of filter nozzles water treatment system

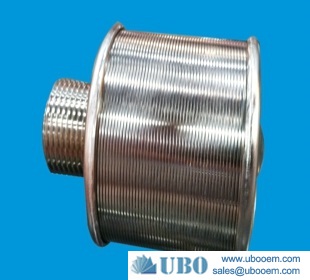

filter nozzles water treatment system
