|Category:||Water Strainer & Nozzle|
|Material:||stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.|
|Properties:||wedge wire screen|
|Application:||filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens|

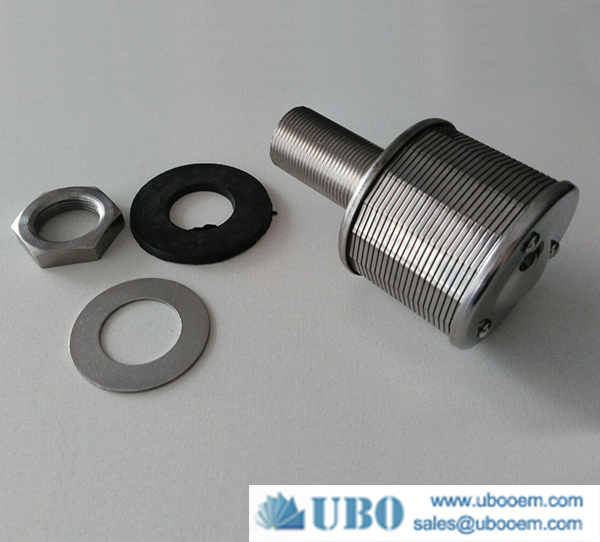

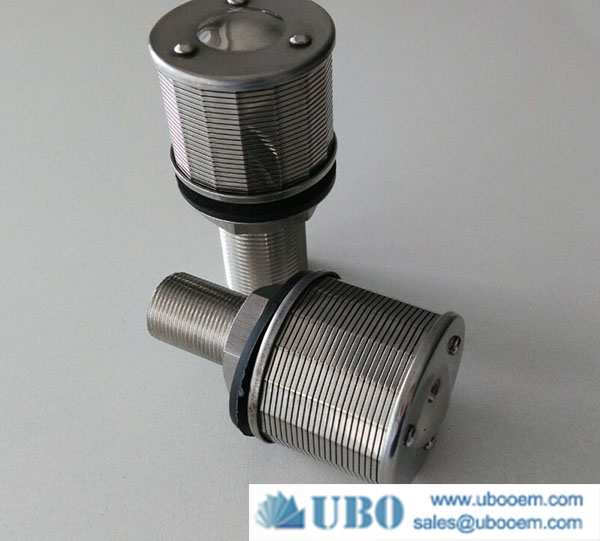

Water wedge wire screen filter nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
