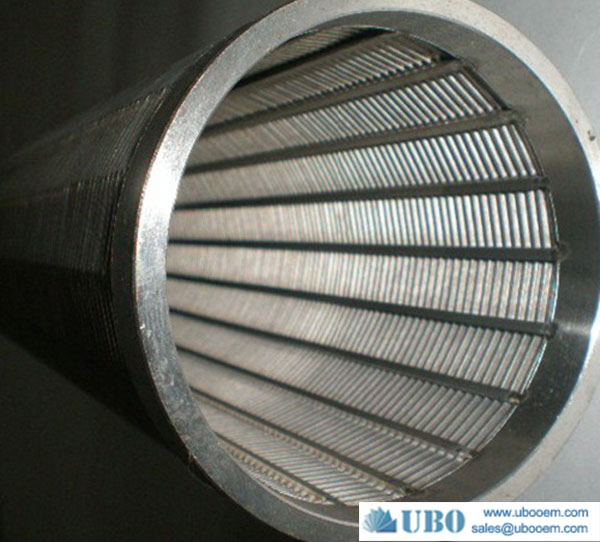

Wedge wire slotted tube

Product Code: 2751
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order

Description of Wedge wire slotted tube

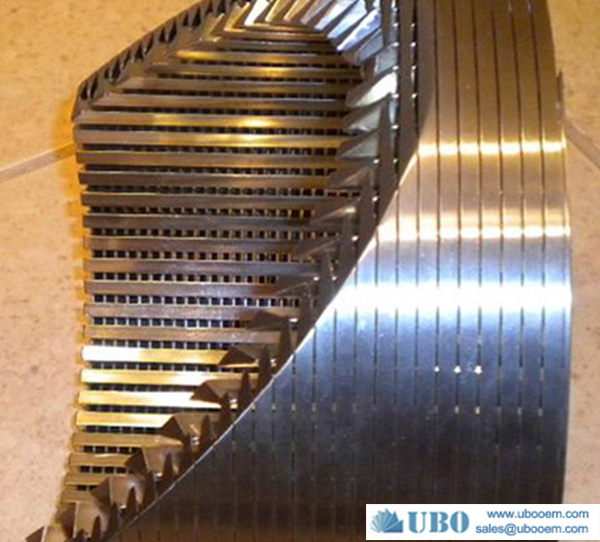

Wedge wire slotted tube are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Wedge wire slotted tube

Applications for Wedge Wire Slotted Tube:

Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Features for Wedge Wire Slotted Tube:

-- Self Supporting;
-- High Abrasion resistance;
-- Low pressure drop;
-- High resistance to Vibration.

Working Principle for Wedge Wire Slotted Tube:

Cylinder wedge wire screens are available for both externally-fed (flow from outside to inside) and internally feed applications. Externally-fed cylinders can be manufactured without requiring a weld seam up to about 36” OD, larger diameters must be fabricated. Internally-fed cylinders are fabricated to customer’s requirements.

1) End view of external-fed cylinder.
2) Internally-fed fabricated rotary screen cylinder.
3) Internally-fed rotary screen cylinder.
4) Reinforced externally-fed rotary screen.
5) Externally-fed rotary screen with flanges.
6) Internally-fed rotary screen with flights.

Specification of the Wedge wire slotted tube

Wedge wire slotted tube

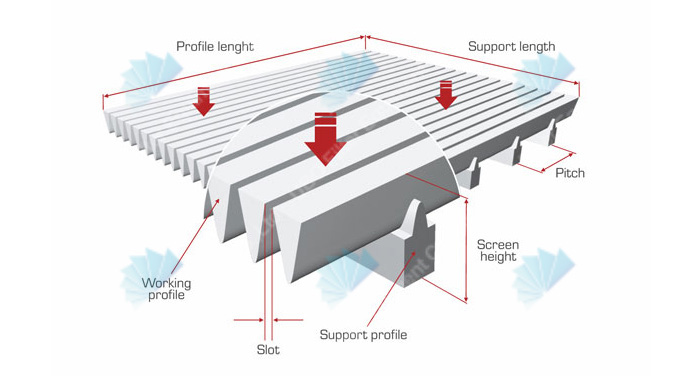

 V-Wire Wrap Screen
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging
from 1 inch -----45 inch.
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement
