Wedge wire column strainer for Power the well

Product Code: 3038
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Wedge wire column strainer for Power the well


Wedge wire column strainer for Power the well is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.

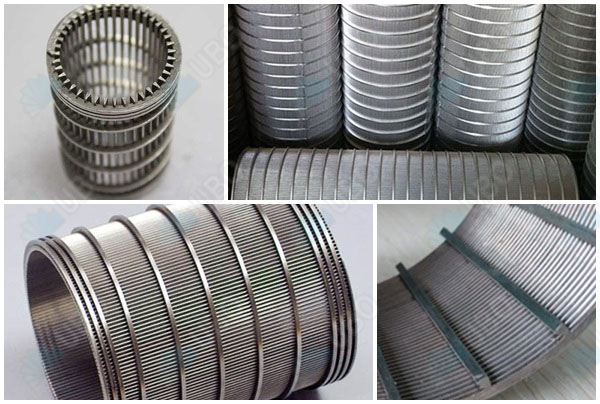

Wedge wire column strainer for Power the well



Application for wedge wire column strainer for power the well:



The v wire wedge wire screen pipe are mainly used for the water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.



Advantages for wedge wire column strainer for power the well:



• High mechanical strength to withstand greater pressure difference.

• The homogeneous filtration gap forms a relatively homogeneous cake to facilitate backwash regeneration.

• Wedged gap can improve backwash regeneration capacity.

• Pressure, temperature, aging and corrosion—resistant, suitable for all kinds of fluids.

• Metal wedged wire mesh is adopted as filter element and has the advantages, such as, high mechanical strength, high g reater pressure difference, easy cleaning, and regeneration. Al most two—dimensional filter mesh have no par— ticle packing dead space, the wedged gap can gather energy when backwashing, with good resuIt.

Specification of the Wedge wire column strainer for Power the well

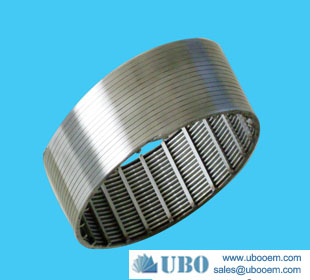

Wedge wire column strainer for Power the well

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note:

other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Wedge wire column strainer for Power the well

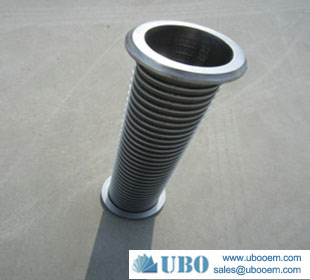

Wedge wire column strainer for Power the well
