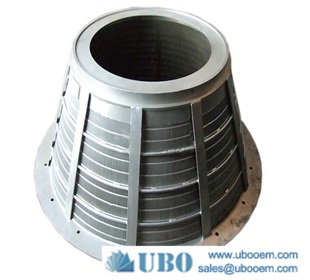

Wedge Wire Slot Pressure Screen Basket

Product Code: 2394
Category:Centrifuge Screens&Baskets
Material:SS 304,316,316L, Stainless steel and carbon steel
Properties:wedge wire mesh
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Wedge Wire Slot Pressure Screen Basket


The sieve screen basket liners which require external supports and also self-supporting balanced baskets for the centrifuge manufacturers. These wedge wire screen baskets are more complex than the other types of screens requiring extra strength to withstand the stresses of centrifuge dryers. These baskets are typically used in mineral processing for coal, potash, salt, sand, pulp,paper and a variety of chemicals. They are also used for refuse removal from oil and gas drillers.


Application for Wedge Wire Slot Pressure Screen Basket:



Screen basket is mainly used in centrifuge dewatering, widely used in coal, chemical, and metallurgical industries. Screen basket is a key part of centrifuge .It is high-speed rotating parts. When work, the basket should not only bear the vibration load, but also bear the impact of coal and water. So it requires relatively high strength and precision.


Advantages for Wedge Wire Slot Pressure Screen Basket:



1) Economical and efficient solution for screening;

2) Heavy duty trommel drum with lifters at the front to facilitate material break up;

3) Screen replaceable for different mesh sizes;

4) Multilayer screens;

5) Easily change screen plates;

6) High efficiency and big capacity;

7) Unique screen design, result in higher capacities, longer screen life and no material clogging;

8) Heavy duty feed hopper;

9) Discharge chute;

10) Gear drive mechanism.

wedge wire slot pressure screen basket

Specification of the Wedge Wire Slot Pressure Screen Basket

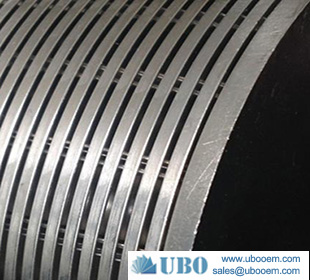

wedge wire slot pressure screen basket



Diameter (mm)
Angle (°)
Slot (mm)
1300
20
0.3,0.4,0.5
900
15
0.3,0.4,0.5
1000
15
0.3,0.4,0.5
1100
13
0.35,0.4
1200
13
0.3,0.4,0.5
1300
13
0.3,0.4,0.5
1500
13
0.45,0.5

Production And Sales of Wedge Wire Slot Pressure Screen Basket


Package: in wood case

Delivery Time: 5-25 days
