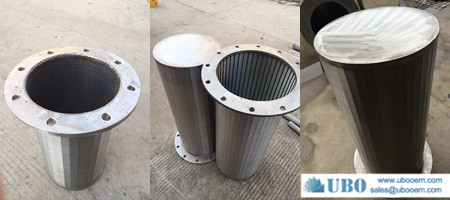

Wedge Wire Screen Resin Traps

Product Code: 2254
Category:Wedge Wire Screen Cylinders
Material:Stainless steel 316L
Properties:edge wire screen cylinders
Application:ore choosing,petroleum,chemical,water,plastics,food

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire Screen Resin Traps


Resin Trap Screen is usually used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.


 Resin Trap Screen


The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

In the event that there is resin/media build up with the Resin Trap Screen assembly, an increase in the pressure drop will result and if one is installed, the resin/media will be visible through the ‘sight glass’.

Specification of the Wedge Wire Screen Resin Traps



SIZE

O.D(MM)

SLOT(INCH)

LENGTH(M)

DIAMETER

Warp(MM)

ROOD(MM)

4

117

0.04

3

304/316

2.2*3

3.8MM/22

4

114.3

0.04

3

304/316

2.3*3

3.8MM/22

6

168.3

0.04

3

304/316

2.3*3.5

3.8MM/32

8

219.1

0.01

3

304/316

3.0*5

3.8MM/48

10

273.1

0.02

3

304/316

3.0*5.0

3.8MM/50

10

273.1

0.04

3

304/316

3.0*5.0

3.8MM/50

Production And Sales of Wedge Wire Screen Resin Traps


Package: Packed in wood case, or upon request.

Delivery time: Accordign to requirement.
