Wedge Wire Profile Screens

Product Code: 2263
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve plate screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Wedge Wire Profile Screens

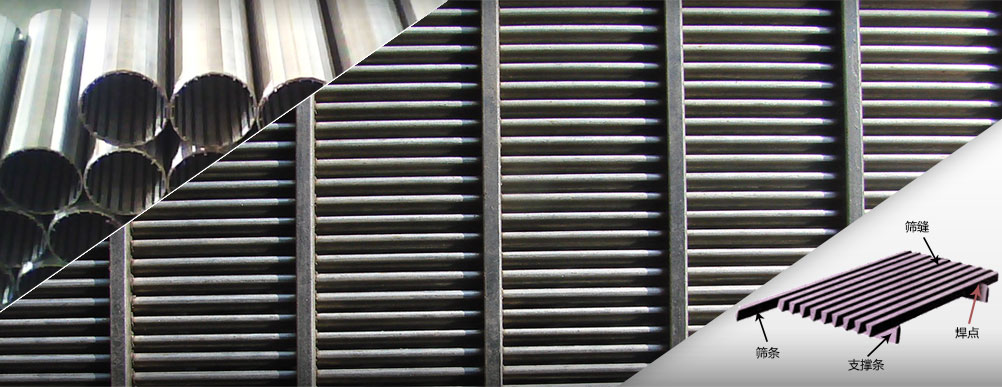

stainless steel wedge wire screen grilles for ventilation is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine, then be made to screen panel through cutting and edge welding. Each profile wire and support rod is welded by resistance welding.



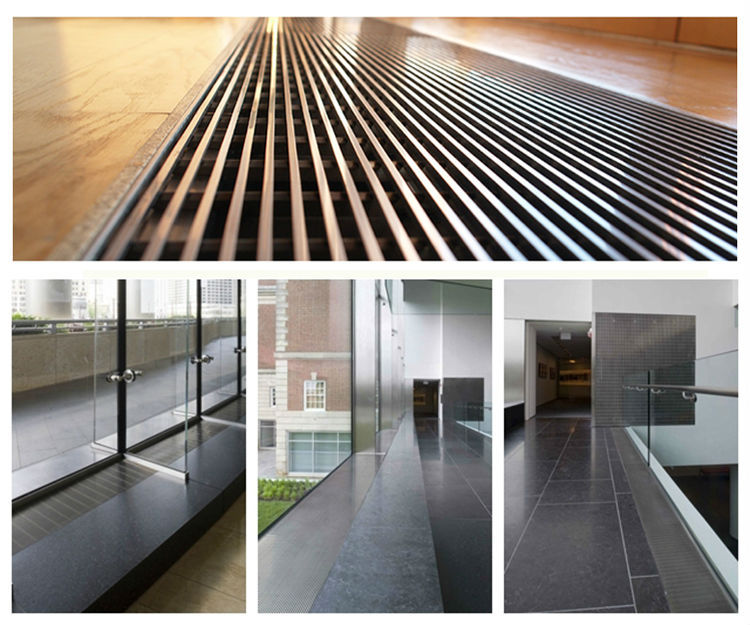

wedge wire Profile Screens



Applications for wedge wire Profile Screens:



Profile screen can be parts of deep well pumps or submersible pumps;can be used for water treatment equipment, environment protection,the sea water desalination,water softening treatment,oil and chemical processing; terminal filtration for petrolic products,filtration for chemical acid and soda liquid,for alcohol and other organic solvents recycle filtration.



Advantages for wedge wire Profile Screens:


1) Better filter function.

The V-shape section plane of water well screens(Johnson screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) Prolong life of well.

The consecutive slot of water well screens(Johnson screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3) Long service life.

Wire and support rods are all-welded, which makes water well screens(Johnson screens) more robust and longer life.

4) High pressure-resistant.

The longitudinal support rods and the continuous slot make the water well screens(Johnson screens) have more excellent pressure-resistant performance.

5) Customized.

Specifications and end connections of water well screens(Johnson type screens) can be fabricated according to customers’ requirements.



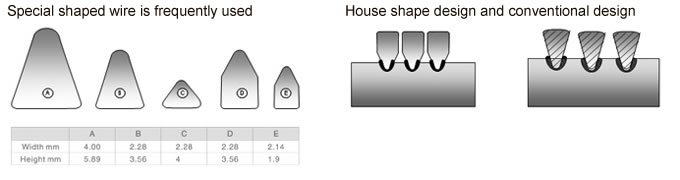

wedge wire Profile Screens



wedge wire Profile Screens

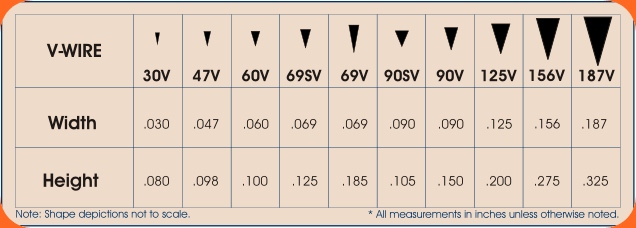

Specification of the Wedge Wire Profile Screens


wedge wire Profile Screens

wedge wire Profile Screens


Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05
