Vibratory Conveyor Wedge Wire Screen Decks

Product Code: 2826
Category:Sieve Plate Screen
Material:Stainless Steel
Properties:Sintered Filter
Application:water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

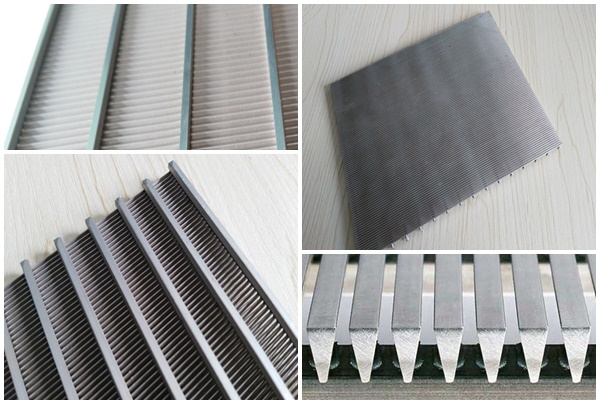

Description of Vibratory Conveyor Wedge Wire Screen Decks


Our Vibratory Conveyor Wedge Wire Screen Decks are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a Johnson vee wire screen plate on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.

Vibratory Conveyor<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Decks

Advantage of Vibratory Conveyor Wedge Wire Screen Decks

1. Non-clogging construction: The V-shape section plane of wedge wire screens (Johnson type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.
2. Large Filtering Area: The consecutive slot of wedge wire screens (Johnson type screens) have wider open area,
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better,
which can increase the water yield and prolong service time of the well.
3.Long service life Wire and support rods are all-welded, which makes wedge wire screens (Johnson types screens) more robust and longer life.
4.Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Johnson type screens) have more excellent pressure-resistant performance.
5.Specifications and end connections of wedge wire screens(Johnson screens) can me fabricated according to customers’ requirements

Constructions of Vibratory Conveyor Wedge Wire Screen Decks


A combination of different support profiles and pitches within one flat screen is possible
Variable spacing between support wires in one screen
Curved screens; curve direction and filtration direction are to be determined by the customer
Frames and reinforcements can be designed and calculated on request, provided that we know the temperature, supports and differential pressure

Usages of Vibratory Conveyor Wedge Wire Screen Decks

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

Specification of the Vibratory Conveyor Wedge Wire Screen Decks


PROFILE WIRE
B (mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
H (mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
α (°)     6° ,10° , 12°
GAP SLOT WIDTH(mm)    0.3mm-10mm



LONG WEDGE
SUPPORT WIRE
  Convex shape wire
B(mm) 1MM-3MM B (mm) 3mm-5 mm
H(mm) 4MM-6MM H (mm) 3mm-5mm



SUPPORT PROFILES
 WIDTH(mm) 2.30 2.30 3.00 3.70 3.30
 HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30



Round Support Rod Construction Rectangular Support Rod Construction
63V on ¼" diameter at 1 ¼" centers 63V on .074" x ½" at 1" centers
69U on 5/16" diameter at 2" centers 69U on .074" x ¾" at 1 ½" centers
93V on 5/16" diameter at 2" centers 93V on .074" x 1" at 2" centers
125V on 3/8" diameter at 3" centers 125V on .105" x1" at 2" centers

Production And Sales of Vibratory Conveyor Wedge Wire Screen Decks
