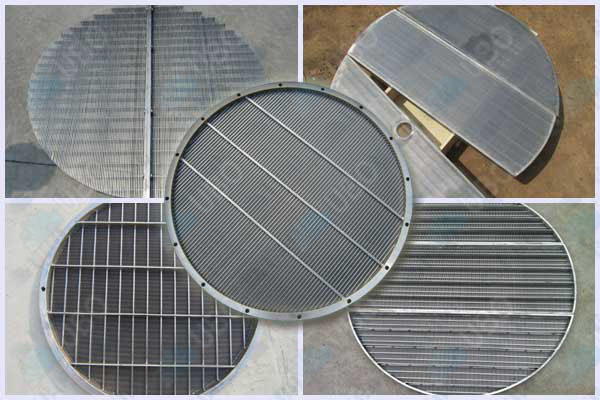

V-Wire flat screens

Product Code: 2793
Category:Lauter Tun Screen
Material:Low carton, low carton galvanized steel (LCG), stainless steel
Properties:Wedge Wire Screen
Application: mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of V-Wire flat screens


 V-Wire flat screens is popularly used in making of water well screen. water well screen is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire).

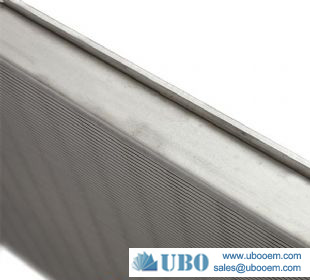

V-Wire flat screens

Usages for V-Wire flat screens:

this screen panel is used in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation; filtration of oils, greases, paints, food products, fuels, liquid cooling agents, chemicals etc.

Characteristic for V-Wire flat screens:

1.)wedge wire screen style isn't easy to be locked
2.)due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.)we are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) we have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles

Features for V-Wire flat screens:

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

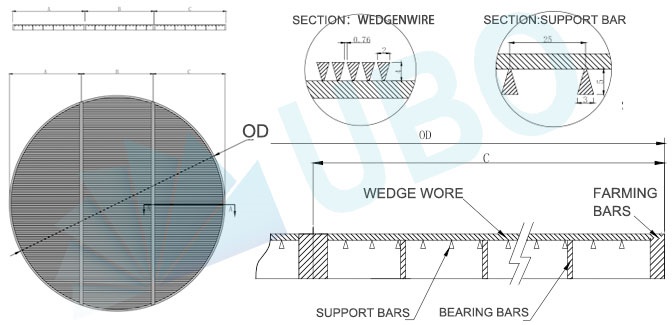

Specification of the V-Wire flat screens

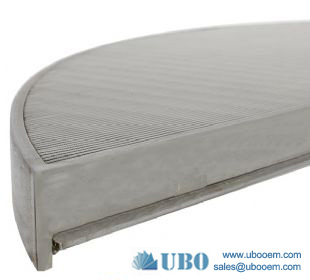

V-Wire flat screens

Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Width from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings
