Stainless Steel well screen filter for Deep desalting treatment

Product Code: 3106
Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless Steel well screen filter for Deep desalting treatment


Stainless Steel well screen filter for Deep desalting treatment consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. Stainless Steel well screen filter for Deep desalting treatment has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

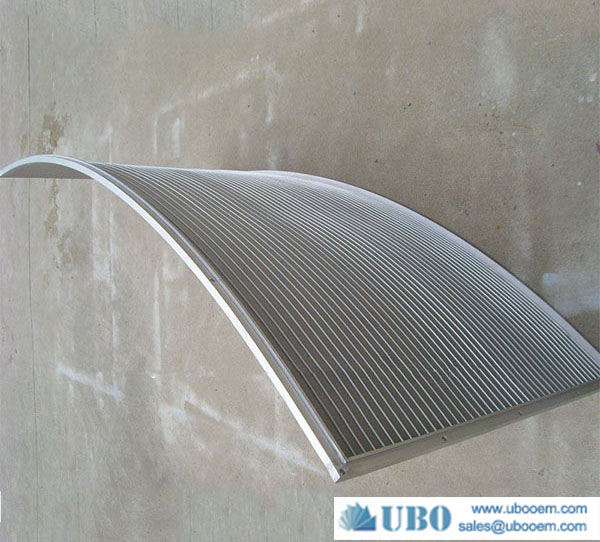

Stainless Steel well screen filter for Deep desalting treatment

Application of Stainless Steel well screen filter for Deep desalting treatment

V- Wire Screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

Advantages of Stainless Steel well screen filter for Deep desalting treatment

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Specification of the Stainless Steel well screen filter for Deep desalting treatment

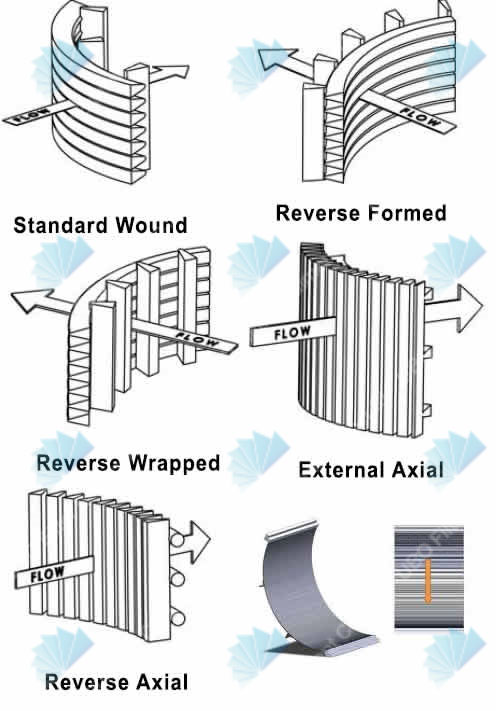

Stainless Steel well screen filter for Deep desalting treatment

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

15º  30º   60º  120º and as your special request

Production And Sales of Stainless Steel well screen filter for Deep desalting treatment

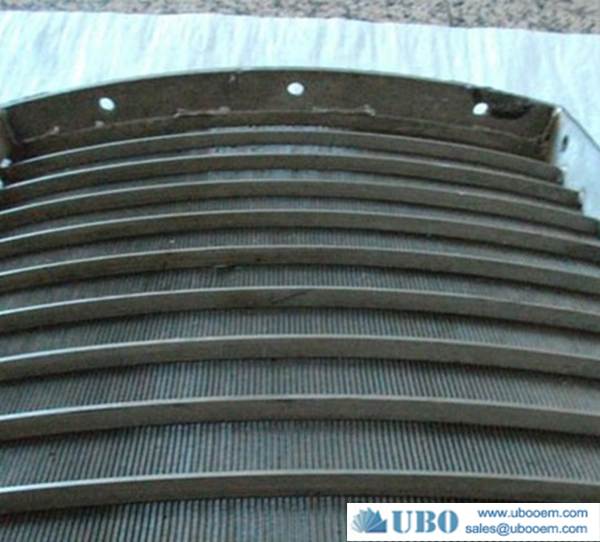

Stainless Steel well screen filter for Deep desalting treatment
