Slot tube

Product Code: 2211
TAGS: Slot, tube,
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen filter
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Slot tube


     Wire wrapped stainless steel wedge wire screen meshs are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Application for Slot tube:

wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Advantages for Slot tube:

1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.
3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.
4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)
5. Long live: Welded at each intersection creating a strong and durable screen.
6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.

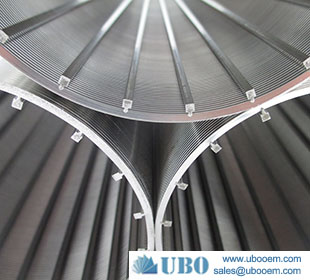

Slot tube

Specification of the Slot tube


Surface Profiles Support Profiles Min. diam. mm Min. slot width mm
10S Q25 21 0.10
11S Q20 or Q25 23 0.030
12S 22S 30 0.050
12S Q25 23 0.030
12S Q35 30 0.050
18S 22S or Q35 30 0.050
18S Q25 25 0.030
18S D45 300 0.20
18S 10x3 300 0.20
22S 22S or Q35 45 0.10
22S D45 or 10x3 or 25x3 300 0.20
28S Q35 215 0.20
28S D45 or 10x3 or 25x3 300 0.20
34S Q35 300 0.20
34S D45 300 0.20
34S 10x3 or 25x3 300 0.20
42S Q35 or D45 300 0.20
42S 10x3 or 25x3 300 0.20

Production And Sales of Slot tube

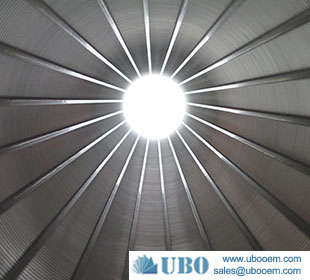

Slot tube
