SPIRAL FIND TUBE STAINLESS STEEL

Product Code: 2803
Category:Wedge Wire Screen Cylinders
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Screen
Application:water treatment, oilfield, mining, food industry, filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of SPIRAL FIND TUBE STAINLESS STEEL


SPIRAL FIND TUBE STAINLESS STEEL have flat type , cylinder type , slope type and basket type . So Wedge wire screen is called as flat welded screen panel , cylinder wedge screen and sieve bend screen . According to the weaving type , they are also called woven wedge wire and welded wedge wire such as crimped wedge wire . welded wedge screen panels.
      We can provide you with a wedge wire screen which designed by your own specifications manufactured from either grade 304 stainless steel or grade 316 stainless steel . Length , width , shape and spacing of profile wire are made to meet your special application requirements .

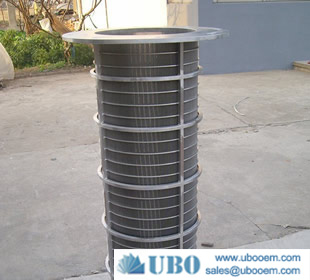

SPIRAL FIND TUBE STAINLESS STEEL

Application for SPIRAL FIND TUBE STAINLESS STEEL:

Wedge wire screen have a lot of applications like using in oil , gas , chemical , food or beverage , mining , waste water management or coal separation .

Advantages for SPIRAL FIND TUBE STAINLESS STEEL:

Johnson screen has a continuous slot opening which significantly increases the available open area , thus providing greater access to the water bearing zone(the aquifer)

Specification of the SPIRAL FIND TUBE STAINLESS STEEL

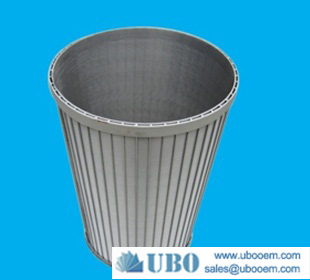

SPIRAL FIND TUBE STAINLESS STEEL

wedge wire Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
support rod Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters
Diameter from 25mm to 1200mm.

Production And Sales of SPIRAL FIND TUBE STAINLESS STEEL

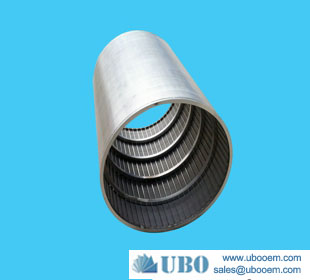

SPIRAL FIND TUBE STAINLESS STEEL
