Multi Wedge Hepa Filters

Product Code: 1971
Category:Wedge Wire Screen Cylinders
Material:Stainless steel 302,304,304L,316,316L
Properties:Wedge Wire Cylinder
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Multi Wedge Hepa Filters

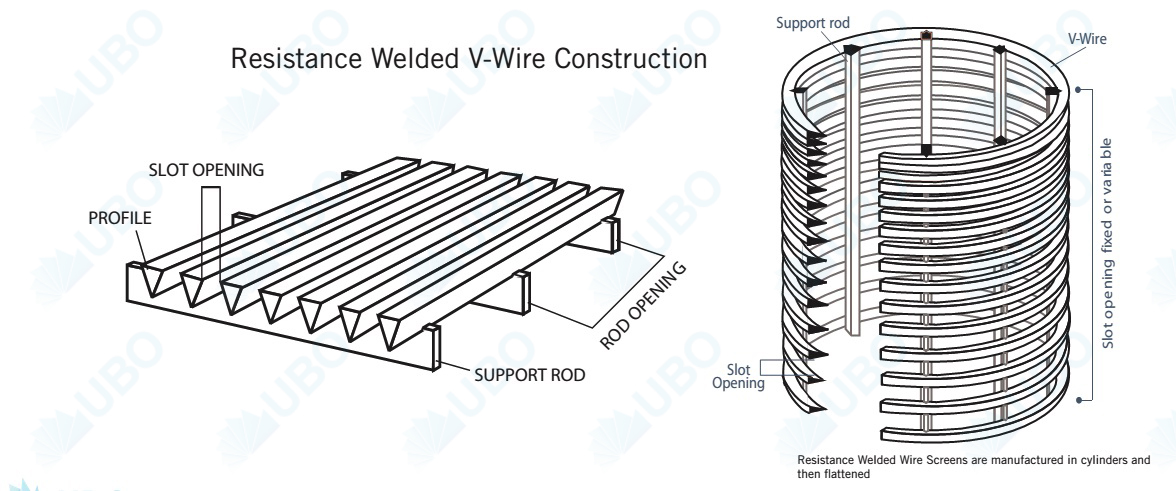

Wire wrapped stainless steel wedge wire screen meshs are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.



Application for Multi Wedge Hepa Filters:



The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, Johnson screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. Johnson screen can be used in many kinds of medium filtering.



Advantage for Multi Wedge Hepa Filters:



*The continuous V-shaped profile minimizes clogging and maintains smooth flow, making it more efficient.
*V-shaped filtration slots help to improve self back flushing capacity.
*High density uniform screen slots ensure larger aperture ratio and no clogging, which greatly improve working efficiency and prolong water well service life.
*The fusion welding between wedge wire and all support wires, makes it strong enough to bear larger crush pressure.

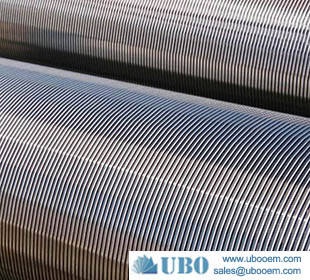

Multi Wedge Hepa Filters

Specification of the Multi Wedge Hepa Filters

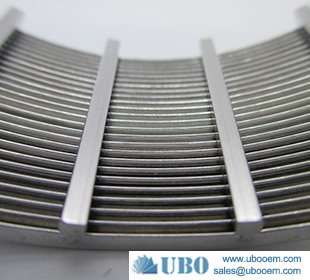

Multi Wedge Hepa Filters

Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings

Production And Sales of Multi Wedge Hepa Filters


Package: in wood case

Delivery Time: 5-25 days
