Mine sieving mesh

Product Code: 2209
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen filter
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Mine sieving mesh


Johnson wedge wire water well filter screens are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a Johnson wedge wire water well filter screen on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.



Applications for Mine sieving mesh:



The wedge wire screen panels can be widely used in mining, coal, petroleum, fertilizer, grain, salt, and environmental protection industries. Screening of liquid, powder



Advantages for Mine sieving mesh:

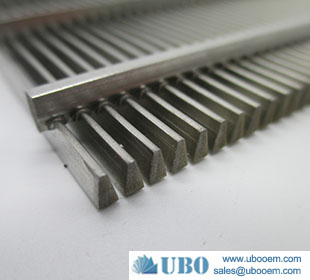

Easy to leak, wear and corrosion resistance. Net wire cross section is trapezoidal. Sieve made of stainless steel wire cold rolled section, shall support the use of automation production equipment sieve welded seam screen uniformity, welding quality and stability, opening rate, long life, has high strength, stiffness and carrying capacity, can be molded into the shape of rigid screening filter.

Mine sieving mesh

Specification of the Mine sieving mesh

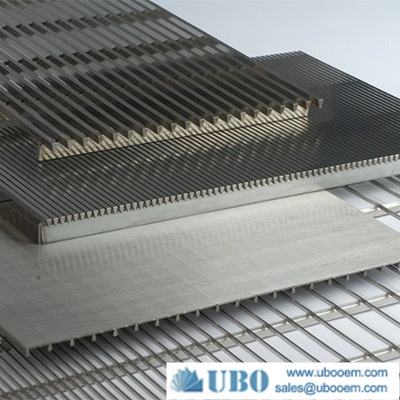

Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement

Production And Sales of Mine sieving mesh


Package: in wood case.

Delivery: 15-30 days
