| Category: | Sieve Plate Screen |
| Material: | stainless steel |
| Properties: | Wedge Wire Screen |
| Application: | water treatment, oilfield, mining, water well,food industry, filtration |

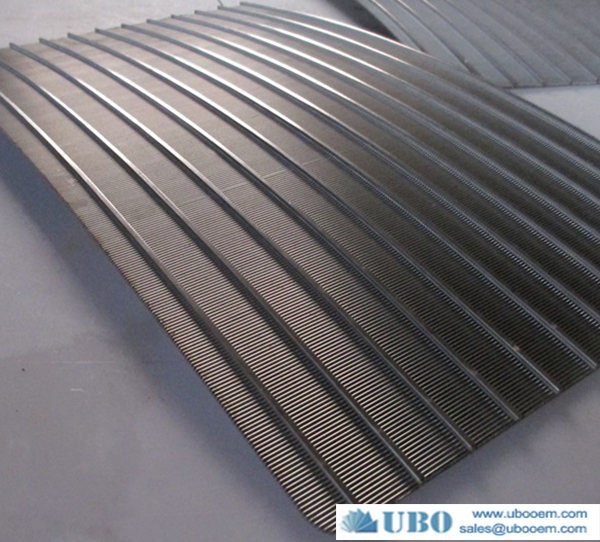

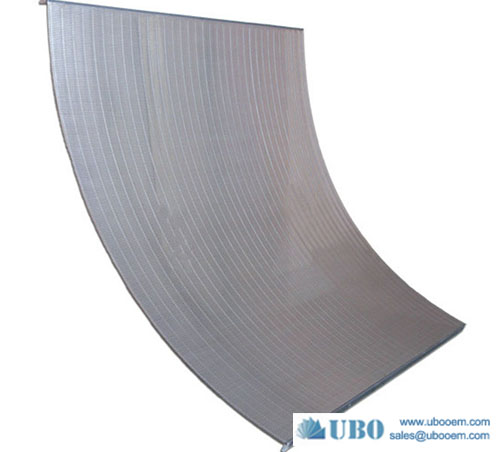

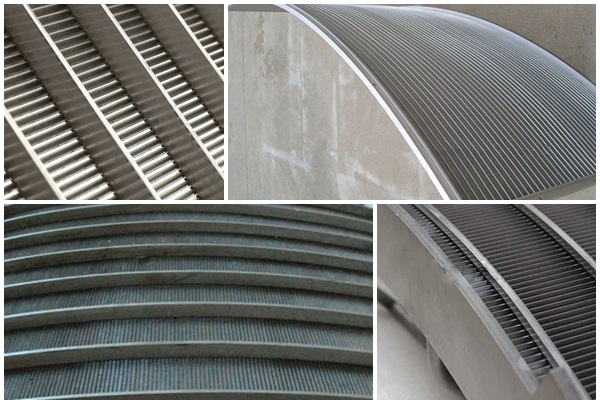

ASTM202 mine sieving mesh for wasterwater treatment is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening
It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
-- High mechanical strength
-- High wear resistance
-- High impact resistance
-- Larger open area
-- Self-supporting structure
-- Non-plugging slot design
-- Lower operation and maintenance cost
| Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 |
| Note: | other specifications available as per request |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | up to 6 meters. |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |
