Intake Screen installation

Product Code: 2223
Category:Wedge Wire Screen Cylinders
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire screen cylinders
Application:solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Intake Screen installation


The structure of our wedge wire screens is a combination of surface profiles and supporting profiles, fusion welded at each crossing. Carefully selected parameters. Guarantee that the mechanical structure of the raw materials used in the manufacture of our wedge wire screens remains unchanged, our careful and thorough pickling and passivating process also enhances the corrosion resistance of the finished product.

Weld procedures used in the process of fitting our wedge wire screens with flanges, frames, support structures and rings etc. are carefully chosen with the same attention. Only the most modern welding and cutting techniques

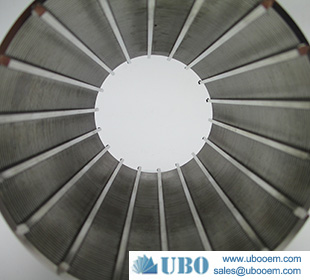

Intake Screen installation



 Applications for Intake Screen Installation:



The support rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, Johnson screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. Johnson screen can be used in many kinds of medium filtering.



UBO Design for Intake Screen Installation:



Our engineering expertise allows us to serve a diverse range of industries, our team of mechanical engineers offer design and engineering solutions for screens used in critical applications. Our services include,aperture size analysis, flow patterns, pressure loss, load bearing capabilities and burst and collapse strengths, all of which are critical to the successfully function of our finished products.

We also design and manufacture our screens to be adapted to fit OEM machinery such as centrifuges, rotary drum screens and thickeners, pulp paper screening equipment, filter dryers, self cleaning and back washing
filter

Specification of the Intake Screen installation

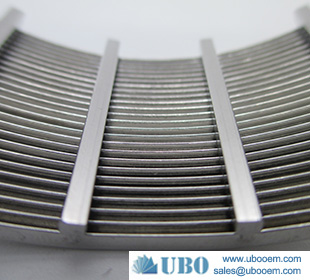

Intake Screen installation


Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Production And Sales of Intake Screen installation


Package: in wood case

Delivery: 10-20 days
