Hub-Lateral Collector

Product Code: 2245
Category:Header-Lateral
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:centrifuge screens and baskets
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Hub-Lateral Collector


Hub-Lateral Collector Header-Lateral or Hub-Lateral Collector/Distributors fabricated with wedge wire are superior screens for retaining media in vessels of all types, i.e. ion exchangers, carbon towers, clay filters, sand filters, and numerous other liquid-solid retention applications.


Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.



Usages for Profile Screen Header Lateral:



Profile screen laterals are widely used in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.



Advantage for Profile Screen Header Lateral:



· Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.

· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.

· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.

· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

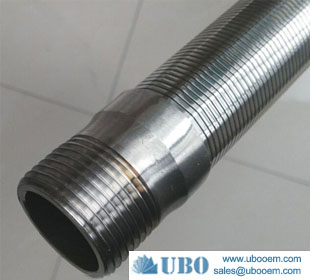

Hub-Lateral Collector

Specification of the Hub-Lateral Collector



Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Hub-Lateral Collector

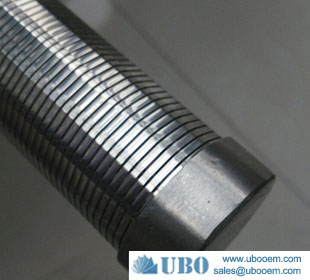

Hub-Lateral Collector
