Grids for Static De-watering Filters

Product Code: 2207
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve plate screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Grids for Static De-watering Filters

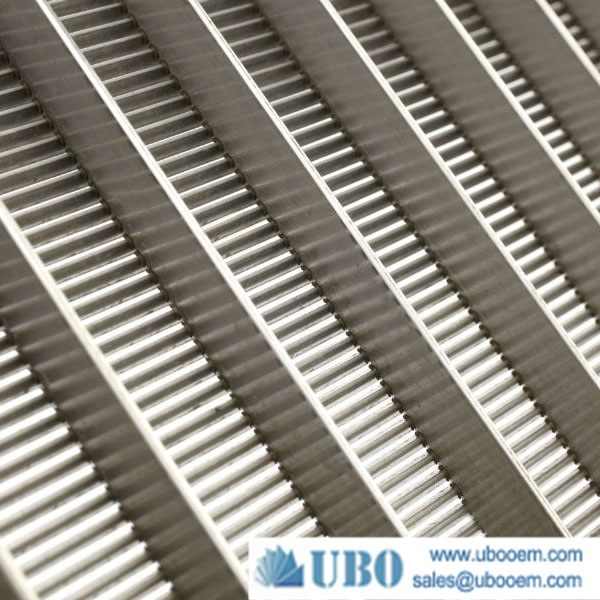

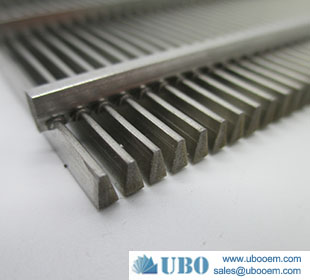

Wire wrapped stainless steel wedge wire screen meshs are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Application for Grids for Static De-watering Filters:



V wire screens are widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.



Advantages for Grids for Static De-watering Filters:



• High mechanical strength to withstand greater pressure difference.
• The homogeneous filtration gap forms a relatively homogeneous cake to facilitate backwash regeneration.
• Wedged gap can improve backwash regeneration capacity.
• Pressure, temperature, aging and corrosion—resistant, suitable for all kinds of fluids.
• Metal wedged wire mesh is adopted as filter element and has the advantages, such as, high mechanical strength, high g reater pressure difference, easy cleaning, and regeneration. Al most two—dimensional filter mesh have no par— ticle packing dead space, the wedged gap can gather energy when backwashing, with good resuIt.

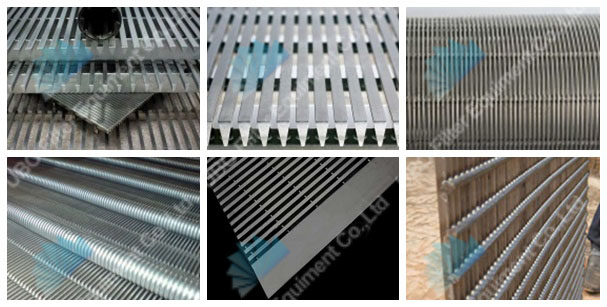

Grids for Static De-watering Filters

Specification of the Grids for Static De-watering Filters


Size (inch) Outside Ø (mm) Inside Ø (mm) Weight lbs / ft N° Holes / m Holes Ø (mm) Thread Outer Screen O.D. (mm) Slot Opening (mm)
2 3/8 60 50,6 4,6 314 10 TCS* 76 TCS*
2 7/8 73 62 6,4 354 10 89
3 1/2 89 76 9,2 354 12 105
4 102 90 9,5 394 12 118
4 1/2 114 102 11,5 472 12 130
5 127 114 13 512 12 143
5 1/2 140 126 15,5 552 12 156
6 5/8 168 150 24 590 12 184

Production And Sales of Grids for Static De-watering Filters


Grids for Static De-watering Filters
