Gradient orifice/Conic Hole Screen

Product Code: 3066
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Gradient orifice/Conic Hole Screen


Gradient orifice/Conic Hole Screen is composed of ribs and V—winding wire, manufactured with advanced special welding equipment. Ribs and V—winding wire are connected with resistance weld by special equipment and has the advantages, such as, high welding strength, homogeneous gap, corrosion resistance, large effective filtration area, good permeability,simple structure, and slot size is 20 micron or larger for users to choose freely.

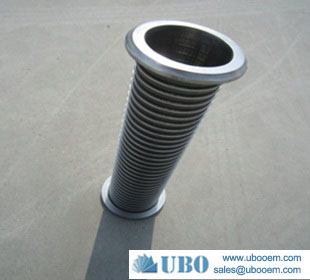

Gradient orifice/Conic Hole Screen



Application of Gradient orifice/Conic Hole Screen



Filter tube or wedge wire pipes are usually used as the water filter equipment. They are used in the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection, the water of the sea into the industrial water and domestic water desalination treatment, water treatment, water softening treatment, oil chemical industry: the terminal filtration of oil products and chemical acid, alkali liquid filtration, alcohol and other organic solution of recycling.



Features of Gradient orifice/Conic Hole Screen



1) Filter pipe with high porosity is more efficient for the construction of water, oil and gas wells.

2) Filter pipe with low operating costs and high porosity is more conducive to groundwater infiltration, and plenty of deep water make the water level drop reduced, thereby reducing energy consumption.

3) Reducing pump wear, under the same conditions, the high porosity makes groundwater infiltration rate in the filter pipe penetration rate more slowly compared to other filtration apparatus, thus avoiding the sand enter the filter pipe in the larger pressure,reducing pump wear.

4) to extend the life of the well, relatively speaking, a high groundwater infiltration drainage pipe filter pores easier, low flow rate, extending the life of the well.

Specification of the Gradient orifice/Conic Hole Screen



Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4 117 0.04 395 6 2.2*3.0 3.8mm/22
4 114.3 0.04 395 6 2.3*3.0 3.8mm/22
6 168.3 0.04 252 8 2.3*3.5 3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8 219.1 0.02 370 10.5 3.0*5.0 3.8mm/48
8 219.1 0.04 323 10.5 3.0*5.0 3.8mm/48
10 273.1 0.01 206 11 3.0*5.0 3.8mm/50
10 273.1 0.02 191 11 3.0*5.0 3.8mm/50
10 273.1 0.04 167 11 3.0*5.0 3.8mm/50

Production And Sales of Gradient orifice/Conic Hole Screen

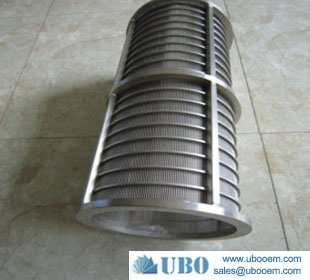

Gradient orifice/Conic Hole Screen
