|Category:||Sieve Plate Screen|
|Material:||stainless steel 304,304L,304HC,316,316L,321,430 or as per your request|
|Properties:||Wedge Wire Screen|
|Application:||water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant|

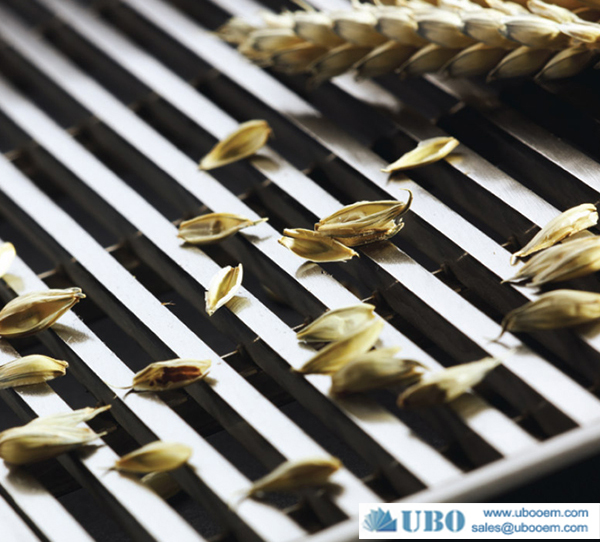

Food & Beverage are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a Food & Beverage on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.
The Johnson wedge wire water well filter screen are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.

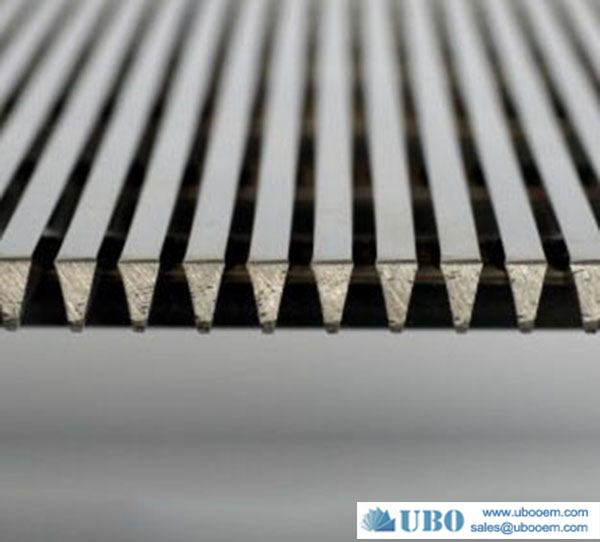

Wedge wire screen is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product. The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen. It has easy leakage, wear and corrosion resistance and other characteristics. It is a rigid screening with high strength, stiffness and load capacity, can be made into various shapes of filters. Widely used in many industries in the screening, filtering, dehydration, mud removing and other operations.
|Food & Beverage|
|Material:||Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)|
|Wedge Wire (mm):||Width : 1.50 1.80 2.30 3.00 3.30 3.70|
|Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00|
|Support Rod (mm):||Width : 2.30 3.00 3.30 3.70|
|Height : 2.70 3.60 4.70 5.60 6.30|
|Round : 2.50mm -- 6.0mm|
|Diameter ranging||from 1 inch -----45 inch.|
|Length:||lengths up to 6 meters.|
|Slot size:||0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.|
|Note: Other specifications can be customized according to your requirement|
