Easily retrievable with winch and track system allowing for easy access for maintenance

Product Code: 2810
Category:Sieve Bend Screen
Material:staonless steel
Properties:Wedge Wire Screen
Application:screen

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Easily retrievable with winch and track system allowing for easy access for maintenance

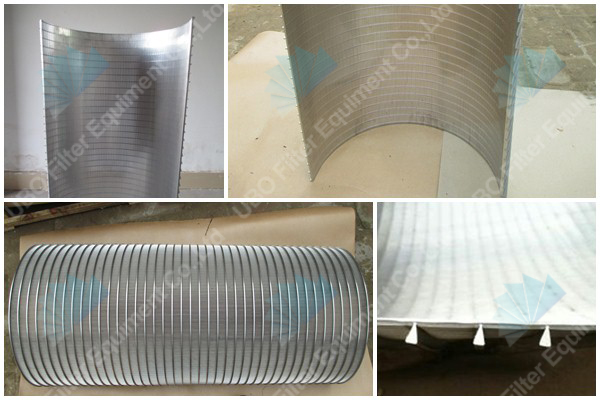

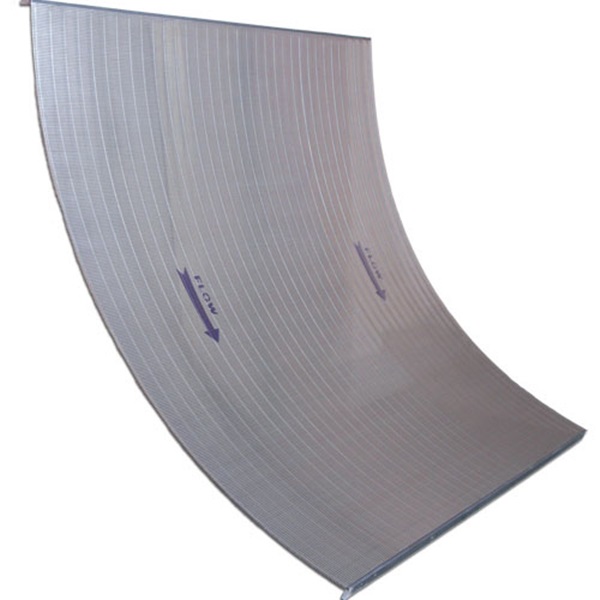

Stainless steel V wire sidehill screen panel is a high efficiency curve separate madia by wet material pressure.

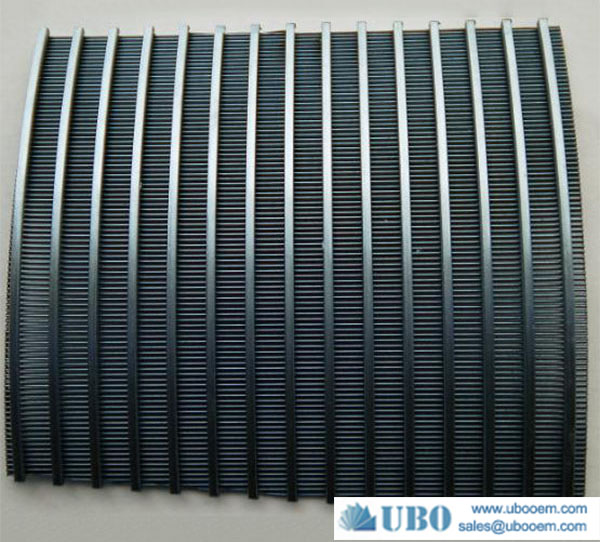

Vee wedge wire screen have high strenthen and carrying capacity,the V wire make sure the screen will not block,easy clean,working very long time.The curve screen made by Nanrui with high accuracy and can instead of all Johnson screen.
Material: AISI 302,AISI 304,AISI 304L,AISI 316,AISI 316L.,polyester frame.



Easily retrievable with winch and track system allowing for easy access for maintenance

Advantage of stainless steel V wire screen

Excellent filtering performance.
Accurate distance between supporting profile.
Welded production process for solid and strong structure.
Good mechanical properties.
High strength.
High load capacity.
Corrosion and rust resistance.
Temperature resistance.
Chemical stability.

Application of stainless steel V wire screen

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

Specification of the Easily retrievable with winch and track system allowing for easy access for maintenance


Easily retrievable with winch and track system allowing for easy access for maintenance

SLOT
(INCH)
LENGTH
(m)
WIDTH
(m)
COLLAPSE
STERENG
(PSI)
TENSILE
WEIGHT
(TON)
WRAP
(thick*deep)
(mm)
RODS
(mm)
0.04
1-6
0.5-2
395
6
2.2*3.0
3.8mm/22
0.04
1-6
0.5-2
395
6
2.3*3.0
3.8mm/22
0.04
1-6
0.5-2
252
8
2.3*3.5
3.8mm/32
0.01
1-6
0.5-2
399
10.5
3.0*5.0
3.8mm/48
0.02
1-6
0.5-2
370
10.5
3.0*5.0
3.8mm/48
0.04
1-6
0.5-2
323
10.5
3.0*5.0
3.8mm/48
0.01
1-6
0.5-2
206
11
3.0*5.0
3.8mm/50
0.02
1-6
0.5-2
191
11
3.0*5.0
3.8mm/50
0.04
1-6
0.5-2
167
11
3.0*5.0
3.8mm/50

Production And Sales of Easily retrievable with winch and track system allowing for easy access for maintenance


Easily retrievable with winch and track system allowing for easy access for maintenance
