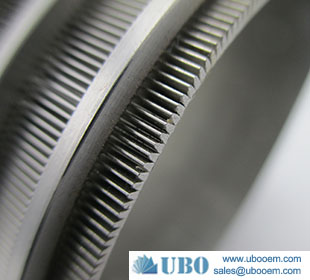

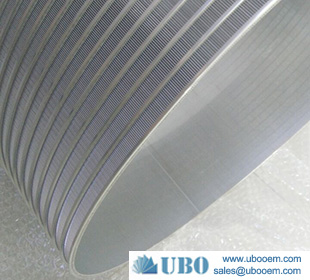

Duplicate Fibre Separator Screen Basket

Product Code: 2396
Category:Wedge Wire Screen Cylinders
Material:Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying,
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry,

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Duplicate Fibre Separator Screen Basket


      The sieve screen basket liners which require external supports and also self-supporting balanced baskets for the centrifuge manufacturers. These wedge wire screen baskets are more complex than the other types of screens requiring extra strength to withstand the stresses of centrifuge dryers. These baskets are typically used in mineral processing for coal, potash, salt, sand, pulp,paper and a variety of chemicals. They are also used for refuse removal from oil and gas drillers.

Application for Duplicate Fibre Separator Screen Basket:

wedge wire screen of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Function and Characteristics for Duplicate Fibre Separator Screen Basket:

Maximum effective flow area and maximum operating efficiency are maintained throughout service life.
Maintenance costs are reduced drastically due to reduced clogging and stapling of fibrous material.
Long-lived straining element provides reduced operating costs over entire service life.
Rigid element prevents flexing which can cause premature element failure.
Efficient, effective debris collection at media/screen interface.
We can also make manufacture according to your detail specifications and we assure that we will give you the best services.
If you are interested in our products please feel free to contact us and your inquiry will meet with our careful attention.

Duplicate Fibre Separator Screen Basket

Specification of the Duplicate Fibre Separator Screen Basket


Duplicate Fibre Separator Screen Basket



diameter (mm)
angle (°)
slot (mm)
1300
20
0.3,0.4,0.5
900
15
0.3,0.4,0.5
1000
15
0.3,0.4,0.5
1100
13
0.35,0.4
1200
13
0.3,0.4,0.5
1300
13
0.3,0.4,0.5
1500
13
0.45,0.5
