Corrosion resistant wedge wire screen water well oil water water treatment

Product Code: 3072
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,316L, low carbon galvanized or as per your request.
Properties:wedge wire screen
Application:Application water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Corrosion resistant wedge wire screen water well oil water water treatment


Corrosion resistant wedge wire screen water well oil water water treatment is composed of ribs and V winding wire, manufactured with advanced special welding equipment. Ribs and V winding wire are connected with resistance weld by special equipment and has the advantages, such as, high welding strength, homogeneous gap, corrosion resistance, large effective filtration area, good permeability,simple structure, and slot size is 20 micron or larger for users to choose freely.

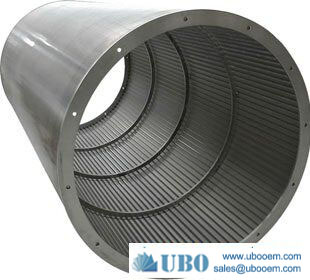

Corrosion resistant wedge wire screen water well oil water water treatment



Applications of corrosion resistant wedge wire screen water well oil water water treatment



Filter tube or wedge wire pipes are usually used as the water filter equipment. They are used in the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection, the water of the sea into the industrial water and domestic water desalination treatment, water treatment, water softening treatment, oil chemical industry: the terminal filtration of oil products and chemical acid, alkali liquid filtration, alcohol and other organic solution of recycling.



Features of corrosion resistant wedge wire screen water well oil water water treatment



1) Filter pipe with high porosity is more efficient for the construction of water, oil and gas wells.

2) Filter pipe with low operating costs and high porosity is more conducive to groundwater infiltration, and plenty of deep water make the water level drop reduced, thereby reducing energy consumption.

3) Reducing pump wear, under the same conditions, the high porosity makes groundwater infiltration rate in the filter pipe penetration rate more slowly compared to other filtration apparatus, thus avoiding the sand enter the filter pipe in the larger pressure,reducing pump wear.

4) to extend the life of the well, relatively speaking, a high groundwater infiltration drainage pipe filter pores easier, low flow rate, extending the life of the well.

Specification of the Corrosion resistant wedge wire screen water well oil water water treatment


Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Production And Sales of Corrosion resistant wedge wire screen water well oil water water treatment

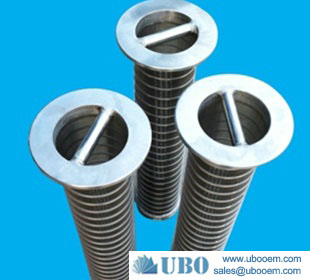

Corrosion resistant wedge wire screen water well oil water water treatment
