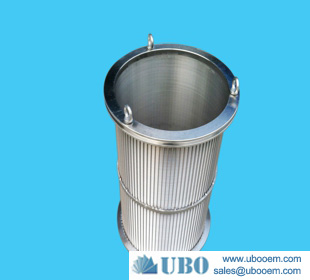

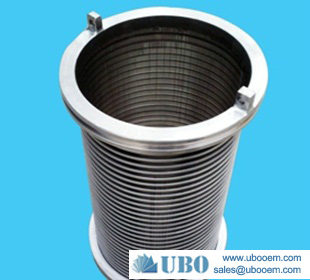

AISI316 wedge wire cylinder filtering element use as Dewatering Screens

Product Code: 2839
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:Wedge Wire Screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of AISI316 wedge wire cylinder filtering element use as Dewatering Screens


Usage: Liquid Filter Type: Filter Cylinder Material: Metal Hole Shape: Square Filter Rating: more than 90% Thickness: as per customer's requirement Length: as per customer's requirement Width: as per customer's requirement profile wire: 1.5*2 2*3 (mm) support rod: 2*3 3*5 4*6 (mm) slot gauge: min 0.02 ~0.05 (mm

1.ID range : 25~640mm
2.Slot size start from 0.02~0.05mm
3.Height and width are possible
1. Cylinders and Conical Baskets (as below) consist of one or more Flat Screens or Flat Welded Screens, rolled to form and welded together.
2. the technical and detail specification as follow :
profile wire support rod size slot size ID height and width
1.5*2mm   2*3mm 2*3mm     3*5mm   4*6mm min0.02~0.05mm 25~640mm as per customer's requirement
Specical specification could be customize .
3. The Cylinders and Conical Baskets can be equipped with flanges, reinforcements or special fittings to suit your needs
4. Application :
 frequently used as:  Strainer Baskets ,  Filtering Elements ,  Rotary drum Screens,   Dewatering Screens,  Pressure Screens ,  Screw press Screens  for water clarification, cleaning, dewatering, pulp screening and fractionation, fiber retention, drying and other liquid/solid separation processes.
5. In Hot Selling All The World:
 Malaysia ; Singapore ; Philippines ; Vietnam; India ; Turkey ; Kuwait;
Poland ; Holland ; Bulgaria ; Macedonia ;
The USA ; Australian ;  Brazil ; Romanian ;
Saudi Arabia ; Iran ; Thailand ; Pakistan ; South Africa;

AISI316 wedge wire cylinder filtering element use as Dewatering Screens

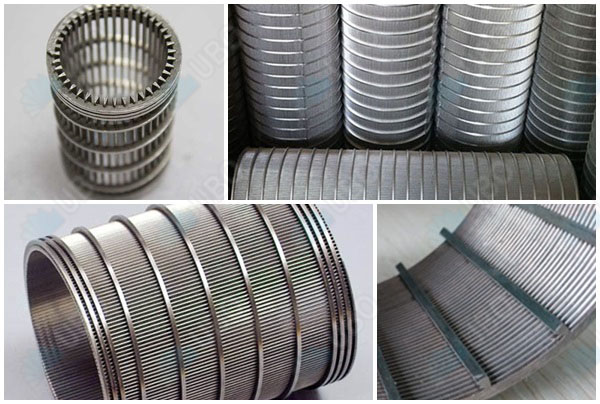

Specification of the AISI316 wedge wire cylinder filtering element use as Dewatering Screens


wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters

Diameter

  from 25mm to 1200mm.

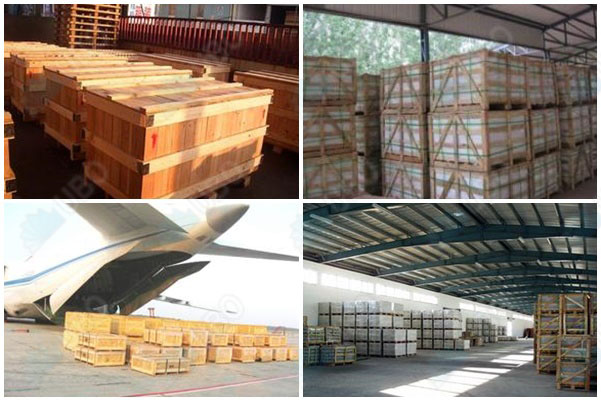

Production And Sales of AISI316 wedge wire cylinder filtering element use as Dewatering Screens


AISI316 wedge wire cylinder filtering element use as Dewatering Screens
