stainless steel cartridge filter

Product Code: 2283
Category:Pleated Filter
Material:Stainless steel 316L
Properties:pleat filter
Application:Filtration

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of stainless steel cartridge filter


stainless steel cartridge filter

This kind of metal filters is made of sintered metal fiber felt(with Protected Mesh).It Could be Added with Connectors,Gasket,O-ring,Inside/Outside Support Cage and etc.Its common length are 10",20", 30", 40".It has good capacicties such as the corrossion resistance,good air permeability,easy to back wash,high filter rating and etc.

Details:

*Filter Elements Adaptors:

1.Standard Adaptors (222,220,226)

2.Fast Interface Connector

3.Threaded Connector

4.Flange

5.Tire Rod

6.Other Special Adaptors

*Sintered Metal Filter Elements Details:

1.Filter Components Materials:SUS 316L,304

2.Filtering Rating:1-50 micron

3.Filter Media:Sintered Metal Fiber Felt

4.Shapes:Cartridge Filter, Disc Filters,Pleated Filter Elements, Filter Panel and etc.

5.Working Temperature:-200 —600°C

*Filter Meidum Infos:

1.Layer:1 layer

2.Standard Thickness:1.0mm with protected mesh

3.MOC:316L

4.Medium Composition:

30/40/50 mesh + sintered metal fiber+30/40/50 mesh

5.Medium Type View:

Plate Type(Standard Type:5layers)

Ubo Filter Co.,Ltd is specialized in producing and distributing Fiber & Synthetic Metal Filters , Stainless Steel Polyer Filter Candle ,Chemical pressure sintered metal net filter ,Porous metal fiber felt filter cartridgeLiquid Solid Pleated Filter Cartridge,316 Metallic Fiber Felt Filter Element,Synthetic Pleatd Metal Cartridge Filter , etc
Welcome to contact us for more information and   cooperation.0086-0311-83289301

Specification of the stainless steel cartridge filter


Water flow (m3/min/m2) at pressure (mbar) SRM 10U 2 mm SRM 20U 2 mm SRM 30U 2 mm SRM 40U 2 mm SRM 50U 2 mm
69 0.25 0.46 0.66 0.83 4.4
138 0.5 0.91 1 1.66 8.87
207 0.75 1.37 1.99 2.49 13.33



CODE

D
(mm)

L
(mm)


(m1)


(m2)

AREA
(m 2 )

CF-35A

35

207

3/4"-16UNF OR 20×1.5



0.07

CF-35B

35

425

3/4"-16UNF OR M20×1.5

3/16"-24UNC OR M6

0.15

CF-35C

35

485

3/4"-16UNF OR M20×1.5

3/16"-24UNC OR M6

0.17



CODE

D
(mm)

L
(mm)


(m)

AREA
(m 2 )

CF-60A

60

500

M33×1.5

0.5

CF-60B

60

400

M33×1.5

0.4

Production And Sales of stainless steel cartridge filter

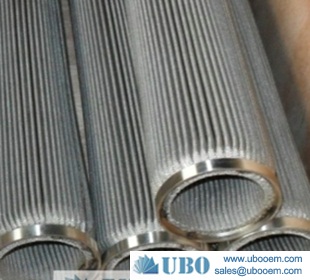

Pleated filter elements are made of quality stainless steel woven wire cloth with micron opening. The alternative filter media can be sintered fiber web imported from Belgium.

Pleated filter elements enjoy the characteristics of long life span, easy cleaning, low cost, etc. Stainless steel filter elements we manufacture are widely used in chemical fiber, petroleum, chemical industry, electric power, pharmaceutics, machinery, metallurgy, ceramics, dispose of sewage, foodstuff and beverage, cosmetic etc.

Main filter media: Stainless steel sintered fiber web and stainless steel wire woven cloth

Advantages of stainless steel pleated filter elements:

High dirt holding capacity;
High reliable standard specifications;
Low pressure drop due to high porosity;
Accurate filtration rating.

Filtration rating available (micron) : 3,5,7,10,15,20,25,30,40,60
Any outline size available according to customer's requirement.

Major application: In filtration of polyester and chemical fiber spinning production.
