cylinder Metal Felt Filter Elements

Product Code: 2072
Category:Cylinder Filter
Material:Stainless steel 304
Properties:cylinder filter
Application:Filtration

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of cylinder Metal Felt Filter Elements

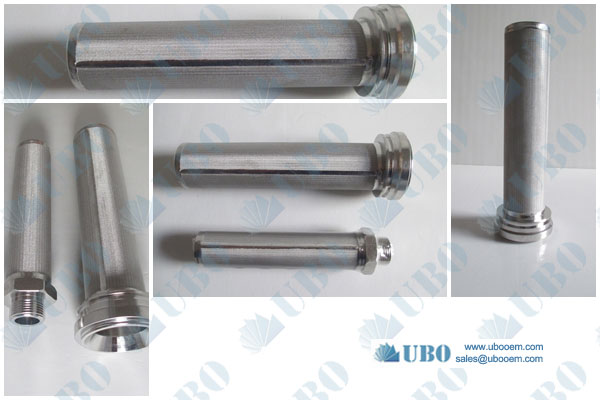

cylinder Metal Felt Filter Elements

metal felt filter media is made with thin filaments of nonwoven stainless steel. These porous metal felt filter elements are ideal for high pressure, highly corrosive, highly viscous or radioactive applications. They feature extremely high porosity (up to 85%), high flow rates (up to 20 times higher than other media types), and very long life.

Random fiber filtration (metal felt) can provide absolute particle retention, longer on stream time and high dirt-holding capacity for under 60 micron filter elements. Although more expensive, it oftens offers clear advantages over wire cloth, sintered metal or non-metallic fibers. Its high temperature, high pressure and corrosion resistance combined with almost unending cleanability, make it highly economical for hostile environments.

Ubo Filter  Co.,Ltd could supply stainless steel filter elements,filter element, filter disc, sintered  filter,filter strainer,polymeric filter,basket filter, wire mesh filter ,pleated filter、

Specification of the cylinder Metal Felt Filter Elements


Extremely high porosity (up to 85%)
- high flow rates: up to 20 times higher than other media types
- long on-stream lifetime
- downscaling is possible (less filter surface is needed to filter the same volume)
Low pressure drop: The high porosity of our metal fiber media allows a very low pressure drop (and thus lower energy cost), even at high filtration velocities
Ease of cleaning: The open structure of porous metal media allows you to clean in situ by backpulsing or backwashing
High strength: The sintering process creates strong fiber bonds and guarantees a high strength filter medium. Combined with an appropriate inner core, our filter elements can withstand thermal shock, high pressures, and frequent backpulsing.
Heat & corrosion resistance: Our filter media can be used in high temperature (up to 1000° C, depending on the alloy) and/or corrosive applications - where non-metallic textile, ceramic or polymer products fail
Can be used for surface or depth filtration. Our filter media enables you to achieve high efficiencies through a cake build-up (surface filtration) and also offer high dirt holding capacity for depth particles capture (depth filtration)
Stainless steel and other alloys available: not brittle, chemical cleaning is possible, weldable, low thermal expansion, maintains structure (no thermal shock) Depending on the performance you require, we select the proper alloy to provide the required resistance and strength

Production And Sales of cylinder Metal Felt Filter Elements


Extremely high porosity (up to 85%)
- high flow rates: up to 20 times higher than other media types
- long on-stream lifetime
- downscaling is possible (less filter surface is needed to filter the same volume)
Low pressure drop: The high porosity of our metal fiber media allows a very low pressure drop (and thus lower energy cost), even at high filtration velocities
Ease of cleaning: The open structure of porous metal media allows you to clean in situ by backpulsing or backwashing
High strength: The sintering process creates strong fiber bonds and guarantees a high strength filter medium. Combined with an appropriate inner core, our filter elements can withstand thermal shock, high pressures, and frequent backpulsing.
Heat & corrosion resistance: Our filter media can be used in high temperature (up to 1000° C, depending on the alloy) and/or corrosive applications - where non-metallic textile, ceramic or polymer products fail
Can be used for surface or depth filtration. Our filter media enables you to achieve high efficiencies through a cake build-up (surface filtration) and also offer high dirt holding capacity for depth particles capture (depth filtration)
Stainless steel and other alloys available: not brittle, chemical cleaning is possible, weldable, low thermal expansion, maintains structure (no thermal shock) Depending on the performance you require, we select the proper alloy to provide the required resistance and strength
