Stainless Steel Sintered Mesh Cone Filter

Product Code: 1639
Category:Cone Filter&Strainer
Material:stainless Steel wire mesh
Properties:stainless steel filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Stainless Steel Sintered Mesh Cone Filter


Stainless steel sintered mesh Cone filter is made of Sintered 5-layer or multi-layer stainless steel wire mesh laminates, it take the advantages of good permeability, high holding dirty capacity, large filter area, long service life, high temperature resistance and corrosion resistance, and cleanable, can be used for many times, it is widely applied in the filtration system of petroleum and chemical industry.

Sintered wire mesh laminate media is composed of 5-layer or multi-layer stainless steel wire mesh, which is special canlendering and sintering in vacuum oven, to create a new filter material with high strength and rigidity. Its interlaced mesh forms a uniform and ideal filtration structure. As a new filter material, it not only overcomes the disadvantages of ordinary metal mesh, such as lower strength, poor rigidity, unstable hole shapes, but has excellent performances such as high precision and strength,efficient flow restriction, mechanical and resistance to abrasion,heat by reasonably arranging its porosity, permeability and strength. Therefore, its total performance has obviously advantages than sintered powder, ceramic, fiber cloth, other filter material.



Applications of Stainless Steel Sintered Mesh Cone Filter



Our sintered mesh has been widely used in many industries such as aerospace, aviation, petroleum, chemical, metallurgy, purification, gas-solid, liquid-solid, and gas-liquid separation cooling, gas distribution, fluidization bed, gas sampling collection, shock reducing, sound attenuation, inflaming retarding.



Features of Stainless Steel Sintered Mesh Cone Filter



1) Distribution and cooling material in high temperature;

2) Material used for gas distribution and fluidization bed;

3) Material requiring high precision, stable performance in high temperature;

4) High pressure backwashed oil filter;

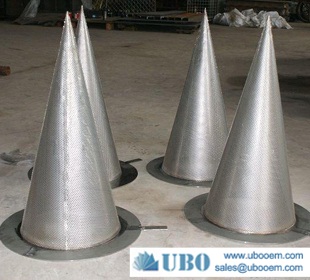

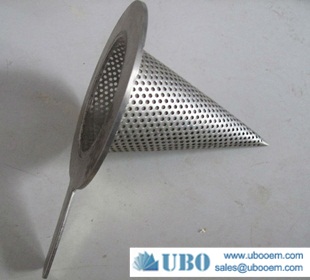

Stainless steel sintered mesh Cone filter

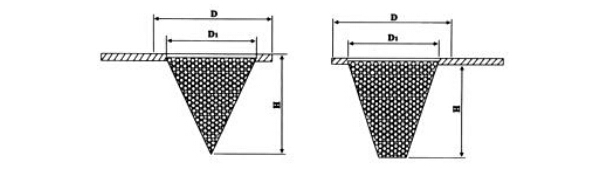

Specification of the Stainless Steel Sintered Mesh Cone Filter


1) Material: SUS 304,316L

2) Rate:1-300um

3) Working temperature:-200-600°C


TYPE

Nominal Micron

um

Working Micron

um

Air Permeability

L/min*cm2*pa

Bubble Point Pressure

Pa

XL-SW1

1

6-7



5300-6000

XL-SW2

2

8-9

(1-6)*10-4

4300-5000

XL-SW5

5

11-13

(6-10)*10-4

3000-3700

XL-SW10

10

16-18

(6-10)*10-4

2700-3300

XL-SW15

15

24-26

(1-6)*10-3

2000-2600

XL-SW20

20

28-32

(1-6)*10-3

1800-2300

XL-SW25

25

34-36

(6-10)*10-3

1400-1900

XL-SW30

30

40-45

(6-10)*10-3

1200-1700

XL-SW40

40

50-55

(1-6)*10-2

1000-1500

XL-SW50

50

71-80

(1-6)*10-2

900-1200

XL-SW70

70

86-95

(6-10)*10-2

700-1100

XL-SW100

100

110-120

≥5*10-2

650-1000

XL-SW150

150



≥5*10-2



XL-SW200

200



≥8*10-2



XL-SW300

300



≥8*10-2



Production And Sales of Stainless Steel Sintered Mesh Cone Filter


Package: in wood case

Delivery Time: 5-25 days
