| Category: | Cone Filter&Strainer |
| Material: | Stainless Steel wire mesh |
| Properties: | stainless steel filter |
| Application: | Filtration,fuel Filter,Hydraulic Filter |

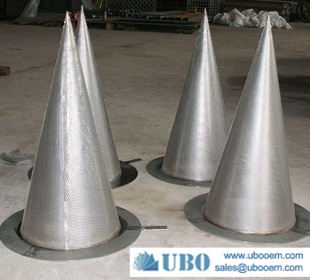

Stainless Steel Cone Colander is also called temporary conical strainer,belonging to pipeline coarse filter series.It is used as pipeline strainers that are designed for new system start-up,removing any coarse, debris such as rags, welding rods, pipe scale, rust etc which accidentally present within the system to ensure the equipment produce safely.
Accuracy of weave
Regularity
High stability
Corrosion resistance
Thermal resistance
Resistance to moisture
Accuracy
Excellent levels of efficiency
Good product throughput
Extended service life
Chemical products
Foodstuffs and spices (milk powder, coffee, tea, rice, grains)
Stones and powders (minerals, diamond sizing, ores, alumina)
Pharmaceutical products
Boards and fixing plates (dividing shavings and wadding)
Paper (sieving wood shavings, preparation of coatings)
Metal powders (Precision sieving of metal powders)
Rubber
Animal feedstuffs (dedusting pellets, sieving crumbs, molasses based foodstuffs)
Fertilisers (phosphates, potash, urea, mixed fertilisers)
Sugar and salt (sizing)
Recycling
Chemical products
Foodstuffs and spices (milk powder, coffee, tea, rice, grains)
Stones and powders (minerals, diamond sizing, ores, alumina)
Pharmaceutical products
Metal powders (Precision sieving of metal powders)
Animal feedstuffs (dedusting pellets, sieving crumbs, molasses based foodstuffs)
Fertilisers (phosphates, potash, urea, mixed fertilisers)
Sugar and salt (sizing)

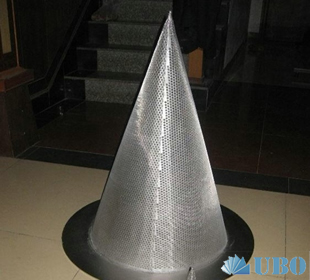

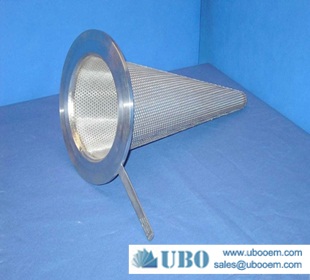

Colander/stainless steel cone colander
1.Diameter of wire mesh discs: from 1 to 30mm.
Material of Wire mesh 304,304L,316,316L
|
Model |
flowing
(m3/min) |
Residual oil
(mg/m3) |
initial pressure differential
(MPa) |
Working pressure
(MPa) |
Working temperature
(°C) |
Size (mm) |
MANN Corresponding
model |
|||
|
D |
D1 |
D2 |
L |
|||||||
|
YQLX I-2 |
2 |
3 |
0.02 |
0.7 |
120 |
φ170 |
φ88 |
φ135 |
200 |
49 000 50 531 |
|
YQLX I-3.5 |
3.5 |
φ170 |
φ88 |
φ135 |
305 |
49 000 50 411 |
||||
|
YQLX I-3.5 |
3.5 |
φ200 |
φ123 |
φ170 |
230 |
49 000 50 201 |
||||
|
YQLX I-4.5 |
4.5 |
φ200 |
φ123 |
φ170 |
305 |
49 000 50 121 |
||||
|
YQLX I-6.5 |
6.5 |
φ200 |
φ123 |
φ170 |
435 |
49 000 50 111 |
||||
|
YQLX I-8 |
8 |
φ328 |
φ220 |
φ272 |
305 |
49 000 50 101 |
||||
|
YQLX I-9 |
9 |
φ274 |
φ165 |
φ220 |
435 |
49 000 50 171 |
||||
|
YQLX I-12 |
12 |
φ328 |
φ220 |
φ275 |
450 |
49 000 50 321 |
||||
|
YQLX I-12 |
12 |
φ274 |
φ165 |
φ220 |
600 |
49 000 50 131 |
||||
|
YQLX I-14 |
14 |
φ355 |
φ245 |
φ300 |
500 |
49 000 50 191 |
||||
|
YQLX I-17 |
17 |
φ355 |
φ245 |
φ300 |
600 |
49 000 50 181 |
||||
|
YQLX I-19 |
19 |
φ355 |
φ245 |
φ300 |
660 |
49 000 50 221 |
||||
|
YQLX I-20 |
20 |
φ324 |
φ220 |
φ275 |
750 |
49 000 50 521 |
||||
|
YQLX I-24 |
24 |
φ355 |
φ245 |
φ300 |
820 |
49 000 50 481 |
||||
|
YQLX I-29 |
29 |
φ355 |
φ245 |
φ300 |
1000 |
49 000 50 541 |
||||
|
YQLX I-42 |
42 |
φ570 |
φ400 |
φ475 |
900 |
49 000 50 581 |
||||
