Pharmaceutical Filter Panel of fine screen

Product Code: 2678
Category:Filter Cloth Packs
Material:stainless steel
Properties:filter disc

Email to Us Start Order

Description of Pharmaceutical Filter Panel of fine screen

The filter panel is made of multi-layer  wire cloth, which is special laminated and sintered in vacuum oven, welded with flange in circle or cone filter. It is mainly applied in the three-in-one or two-in-one equipment of such as pharmaceutical,chemical and food industry etc.

Features of Pharmaceutical Filter Panel of fine screen

High strength and rigidity
Continuous operating temperature range of -200° to 600°C
Easily cleaned

UBO diffusion-bonded wire cloth laminates are made from layers of stainless steel wire cloth, which are furnace-sintered together into seamless sheets. These porous metal structures provide the accurate filtration characteristics of wire mesh for greater strength and durability.

UBO sintered screens can he fastened by several methods, including welding, caulking bars, and threaded fasteners which are welded to the downstream mesh layers. The screens are manufactured to precise dimensions that assure a perfect fit.

Applications of Pharmaceutical Filter Panel of fine screen

Filter panels are mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks.

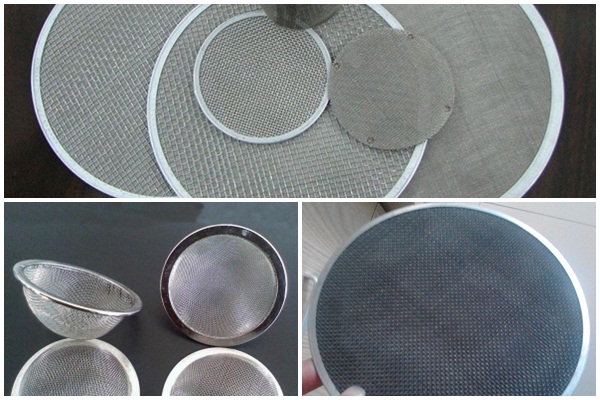

Pharmaceutical Filter Panel of fine screen

Ubo is specialized in producing and distributing filter elements,filter cartridge,filter disc,wire mesh filter disc,wire mesh filter,stainless steel filter, cone filter,basket filter,metal filter elements,filter strainer,Welcome to contact us for more information and cooperation.

Specification of the Pharmaceutical Filter Panel of fine screen

Available in a variety of standard micron ratings. Custom filters also available.

Material: 304 , 316L Stainless steel
Standard Micron Ratings - 2, 5, 10, 20, 30, 40, 75, 100


Standard sheet size is 600mm x 1200mm (24" x 48")
Larger panels are available by welding sheets together
Diameter 100mm~3000mm

UBO sintered wire screens are available for filter dryers, Nutsche filters, centrifuges, fluid bed dryers, pressure leaf filters, plate and frame filters, and dust collectors.

Production And Sales of Pharmaceutical Filter Panel of fine screen

Packing:wooden case
