Wastewater Screening in Wastewater Treatment Plants: Everything You Need to Know

Screening plays a pivotal role in wastewater treatment within sewage treatment plants. It's a crucial initial step to ensure the efficient functioning of the entire wastewater treatment process. Its primary goal is to remove solids and debris that can impair equipment, hinder efficiency, and potentially contaminate water bodies, posing ecological risks to entire regions.

Purpose of Wastewater Screening

1. Preventing Contamination: Before wastewater undergoes treatment, it often contains organic waste of various sizes originating from human activities. To efficiently intercept this waste, appropriately sized screens are essential. Screening involves placing screens strategically to capture materials like rags, textiles, plant debris, and plastics present in the wastewater.

2. Protection of Equipment: Screening also serves to safeguard downstream water and sludge treatment equipment from complex malfunctions. Equipment beyond the screening phase isn't designed to handle coarse solids. Screening prevents clogs in pipes and valves, damage to turbine blades, filtration membrane problems, and electromechanical equipment malfunctions.

3. Enhanced Efficiency: By using screens, the volume of water entering the treatment plant is significantly reduced. This reduction results in more efficient and rapid wastewater treatment. Any refuse that accumulates on the screen's wet surface must be removed for a smooth water flow, which can be achieved manually with rakes or automatically with combs or scrapers.

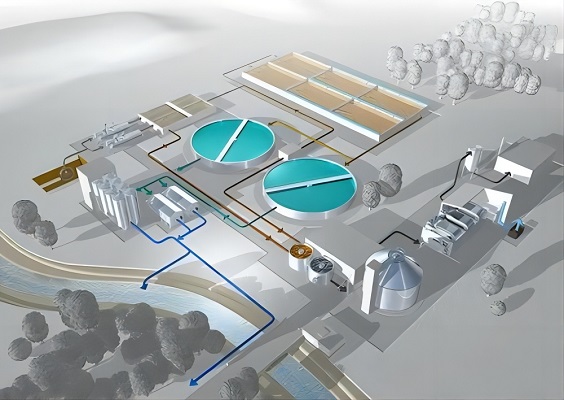

sewage wastewater treatment plant


Types of Screening

Wastewater treatment screens can be categorized into three main types: coarse, fine, and micro screens. The specific spacing between screen bars determines the level of screening:

Pre-Screening: Spacing above 40 mm.

Medium Screening: Spacing strictly between 40 mm and 10 mm.

Fine Screening: Spacing strictly between 10 mm and 6 mm.

Ultra-Fine Screening or Sieving: Spacing strictly between 0.5 mm and 6 mm.

Fine Screening in Wastewater Treatment Plants

Fine screening, a critical aspect of wastewater treatment, involves screens with clear openings less than 6mm. These screens are constructed using wire cloth, wedge wire, or perforated plates. Three common types of fine screening in wastewater treatment are:

Drum Screens: These are rotating cylinders in the flow channel.

Step Screens: Comprising fixed and movable plates across the channel's width.

Static Wedge Wire Screens: Typically used by large treatment plants with ample floor space.

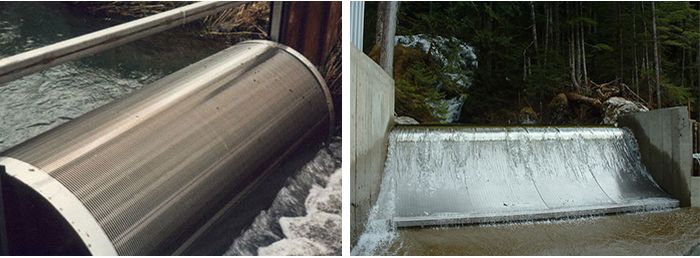

Static<a href='' target='_blank'> Wedge Wire Screen</a>s for wastewter treatment


Distinguishing Screening from Filtration

While both screening and filtration are essential wastewater treatment steps, they serve different purposes:

Screening: It is the initial phase aimed at removing larger organic debris, such as rags, paper, plastics, and metals, to prevent damage and clogging of downstream equipment.

Filtration: This is the second phase that targets the removal of remaining pollutants to meet government water quality standards. It treats water post-screening.

Key Differences Between Screening and Filtration

1. Sequence: Screening precedes filtration in the wastewater treatment process.

2. Purpose: Screening eliminates larger organic debris, whereas filtration addresses remaining pollutants.

3. Equipment: Filtration may involve stationary or portable systems, while screening can be manual or mechanical.

In conclusion, wastewater screening and filtration are vital processes for ensuring the safety and quality of water for human consumption and various uses. These processes rely on diverse technologies, demanding high efficiency and reliability to guarantee successful wastewater treatment. For all your screening needs in treating polluted water, YUBO Filter Factory offers top-notch solutions tailored to your projects. Contact us today for personalized and efficient solutions.
