SS304 cross flow sieve bend screen for clarifying

Product Code: 3122
Category:Sieve plate screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of SS304 cross flow sieve bend screen for clarifying


SS304 cross flow sieve bend screen for clarifying are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a SS304 cross flow sieve bend screen for clarifying on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.

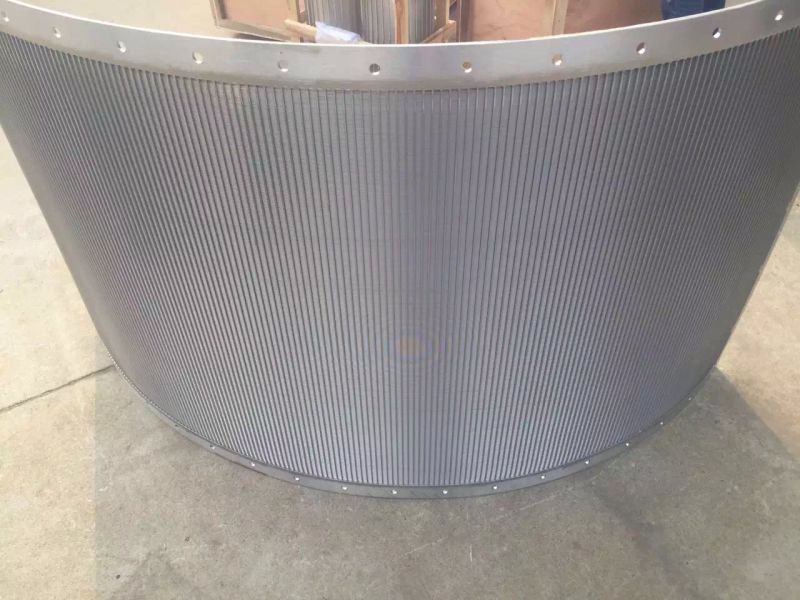

SS304 cross flow sieve bend screen for clarifying

Application of SS304 cross flow sieve bend screen for clarifying

The Johnson wedge wire water well filter screen are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.

Feature of SS304 cross flow sieve bend screen for clarifying

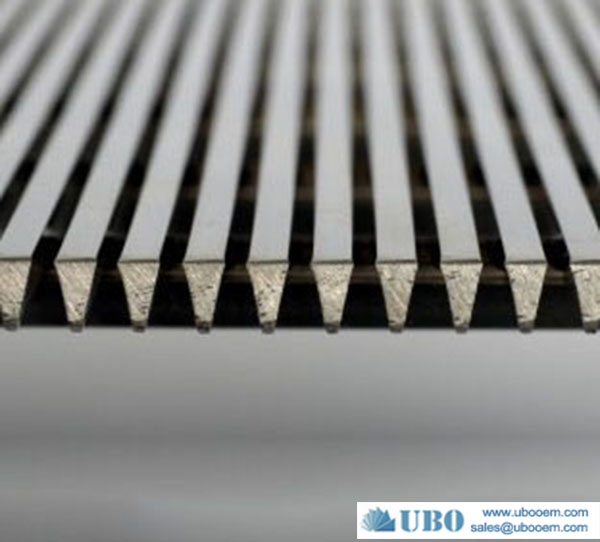

Wedge wire screen is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product. The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen. It has easy leakage, wear and corrosion resistance and other characteristics. It is a rigid screening with high strength, stiffness and load capacity, can be made into various shapes of filters. Widely used in many industries in the screening, filtering, dehydration, mud removing and other operations.

Specification of the SS304 cross flow sieve bend screen for clarifying


SS304 cross flow sieve bend screen for clarifying

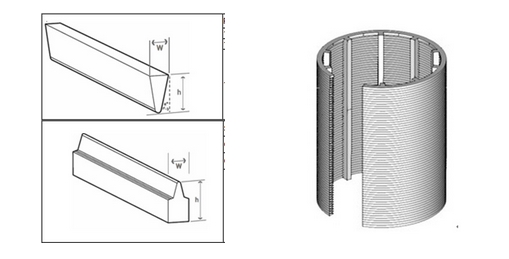

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of SS304 cross flow sieve bend screen for clarifying


SS304 cross flow sieve bend screen for clarifying
