Synthetic & BOPETMetal Fiber Filter Elements

Product Code: 1684
Category:Metal felt filter elements
Material:Stainless Steel sintered mesh,,Metal Fiber
Properties:Sintered filter
Application:Filtration,industry filtration

Email to US Start Order


Author: Maria
Email:sales@ubooem.com

Description of Synthetic & BOPETMetal Fiber Filter Elements

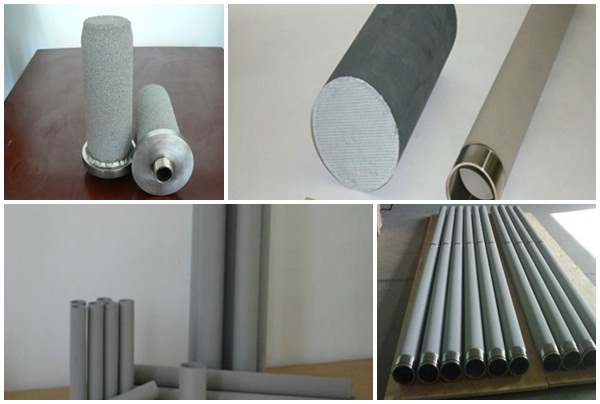

Synthetic & BOPETMetal Fiber Filter Elements is made with thin filaments of nonwoven stainless steel. These porous metal felt filter elements are ideal for high pressure, highly corrosive, highly viscous or radioactive applications. They feature extremely high porosity (up to 85%), high flow rates (up to 20 times higher than other media types), and very long life.

Random fiber filtration (Synthetic & BOPETMetal Fiber Filter Elements ) can provide absolute particle retention, longer on stream time and high dirt-holding capacity for under 60 micron filter elements. Although more expensive, it oftens offers clear advantages over wire cloth, sintered metal or non-metallic fibers. Its high temperature, high pressure and corrosion resistance combined with almost uneSynthetic & BOPETMetal Fiber Filter Elements  have a random matrix of 316-L stainless steel filaments with diameters from 4 to 25 microns. The finer the micron, the more open area is provided in a pure crosshatch pattern. When sinter bonded, this random matrix can provide:

Synthetic & BOPETMetal Fiber Filter Elements  Elements Extremely high porosity (up to 85%)
- high flow rates: up to 20 times higher than other media types
- long on-stream lifetime
- downscaling is possible (less filter surface is needed to filter the same volume)

Feature of Synthetic & BOPETMetal Fiber Filter Elements

Low pressure drop: The high porosity of our metal fiber media allows a very low pressure drop (and thus lower energy cost), even at high filtration velocities

Ease of cleaning: The open structure of porous metal media allows you to clean in situ by backpulsing or backwashing

High strength: The sintering process creates strong fiber bonds and guarantees a high strength filter medium. Combined with an appropriate inner core, our filter elements can withstand thermal shock, high pressures, and frequent backpulsing.

Heat & corrosion resistance: Our filter media can be used in high temperature (up to 1000° C, depending on the alloy) and/or corrosive applications - where non-metallic textile, ceramic or polymer products fail

Usages of Synthetic & BOPETMetal Fiber Filter Elements

Can be used for surface or depth filtration. Our filter media enables you to achieve high efficiencies through a cake build-up (surface filtration) and also offer high dirt holding capacity for depth particles capture (depth filtration)

Stainless steel and other alloys available: not brittle, chemical cleaning is possible, weldable, low thermal expansion, maintains structure (no thermal shock) Depending on the performance you require, we select the proper alloy to provide the required resistance and strength

For Synthetic & BOPETMetal Fiber Filter Elements filtration, the absolute filter ratings are:

for liquids — 1 to 80 µm

for air & gases — below 0.1 µm is possible (HEPA, ULPA)

nding cleanability, make it highly economical for hostile environments.

Synthetic & BOPETMetal Fiber Filter Elements

Announcement:

If you can envision it,We can supply it. TEL:0086-0311- 83289301 E-mail:sales@ubooem.com

·          Ubo will do everything possible to provide exact and full product information based on metal mesh for your information.

·          In order to give customer a clear image of the product,Ubo has taken some pictures, customer can dowmload for reference but using our picture for business is forbidden.

·          Due to technique and other factors,product image might be slight different to the products itself,in case everything will follow the products.

·          Ubo appreciate any suggestion on our product information or picture or anything else.

Specification of the Synthetic & BOPETMetal Fiber Filter Elements


For Synthetic & BOPETMetal Fiber Filter Elements filtration, the absolute filter ratings are:

for liquids — 1 to 80 µm

for air & gases — below 0.1 µm is possible (HEPA, ULPA)

nding cleanability, make it highly economical for hostile environments.

Mesh Wire dia (inch) Absolute Filtration Rating(μm) Nominal Filtration Rating(μm)
20*250 .0098*.0079 110~120 98~105
30*360 .0098.0060 90~100 80~84
40*560 .0070*.0040 70~75 47~52
120*400 .0040*.0025 50~55 37~43
120*160 .0040*.0025 35~40 28~32
80*700 .004*.003 28~32 24~26
200*600 .0024*.0018 24~26 19~21
165*800 .0028*.0020 16~18 14~16
165*1400 .0028*.002 12~14 9~11
