Sintered Dedust Filter Elements

Product Code: 1701
Category:Sintered metal mesh filter
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Sintered filter
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to US Start Order


Author: Jane
Email:sales@ubooem.com

Description of Sintered Dedust Filter Elements

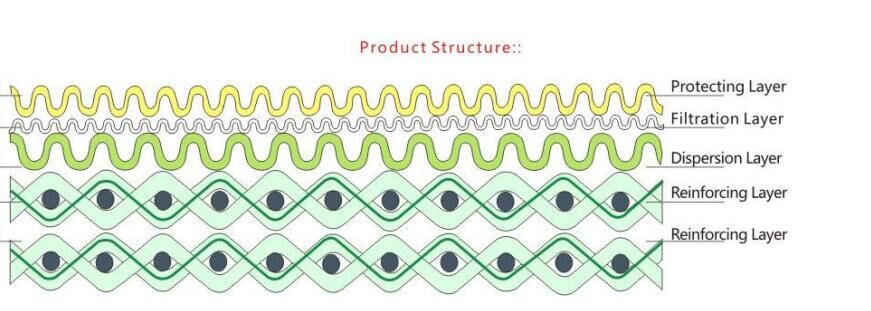

The Sintered Dedust Filter Elements are manufactured with sintered metal micro-fibers, uniformly distributed to create a 3D filtering structure. The metal felt cartridge are specifically designed for viscous or corrosive fluids, or those with high viscosity.

ntered De Dust Filter Elements

Applications for Sintered De Dust Filter Elements:

High temperature fluids
High viscosity fluids
Toxic or hazardous fluids
Hydraulic oil
Natural or process gases
Process steam
High differential pressure
Corrosive liquids and gases
Cryogenic fluids
Electronic grade liquids or gases
Precious particulate recovery
Sterilization steam

Features for Sintered De Dust Filter Elements:

3 times greater dirt holding capacity than conventional metal cartridges
Double the porosity and permeability than sinter metal power cartridges
4 times higher flow rate than conventional metal cartridges
No media migration or fiber release
Excellent mechanical strength
Reclothing design available

ntered De Dust Filter Elements

Specification of the Sintered Dedust Filter Elements


ntered De Dust Filter Elements





Specifiction
μm(c)

Micron
μm(c)

Pressure of Bubble Point
(pa)

Air Permeability
L/(min.dm2)

Pore Opening
(%)

Pollutant Carry Capacity
(mg/cm2)

Thickness (mm)

Breaking Strength
(MPa)

Basic Value

Dev.

Basic Value

Dev.

Basic Value

Dev.

Basic Value

Dev.

Basic Value

Dev.

Basic Value

Dev.

SF5

5

6800

+10%

47

+10%

75

+10%

5.0

+10%

0.30

+10%

32

+10%

SF7

7

5200

63

76

6.5

0.30

36

SF10

10

3700

105

75

7.8

0.37

32

SF15

15

2450

205

79

8.6

0.40

23

SF20

20

1900

280

80

15.5

0.48

23

SF25

25

1550

355

80

19.0

0.62

20

SF30

30

1200

520

80

26.0

0.63

23

SF40

40

950

670

78

29.0

0.68

26

SF60

60

630

1300

85

36.0

0.62

28

  1.Material:SUS316L

  2.Micron:5-60um

  3.Could add protected mesh on both side

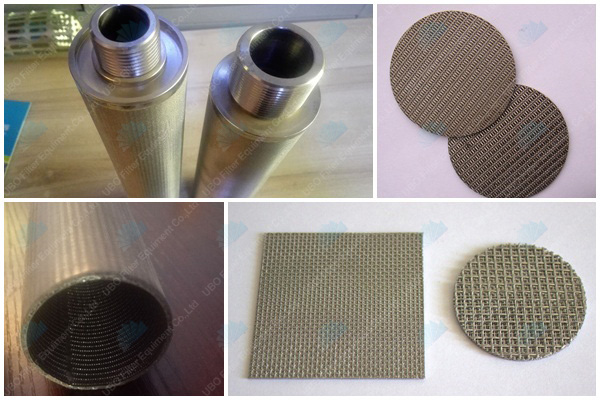

Production And Sales of Sintered Dedust Filter Elements
