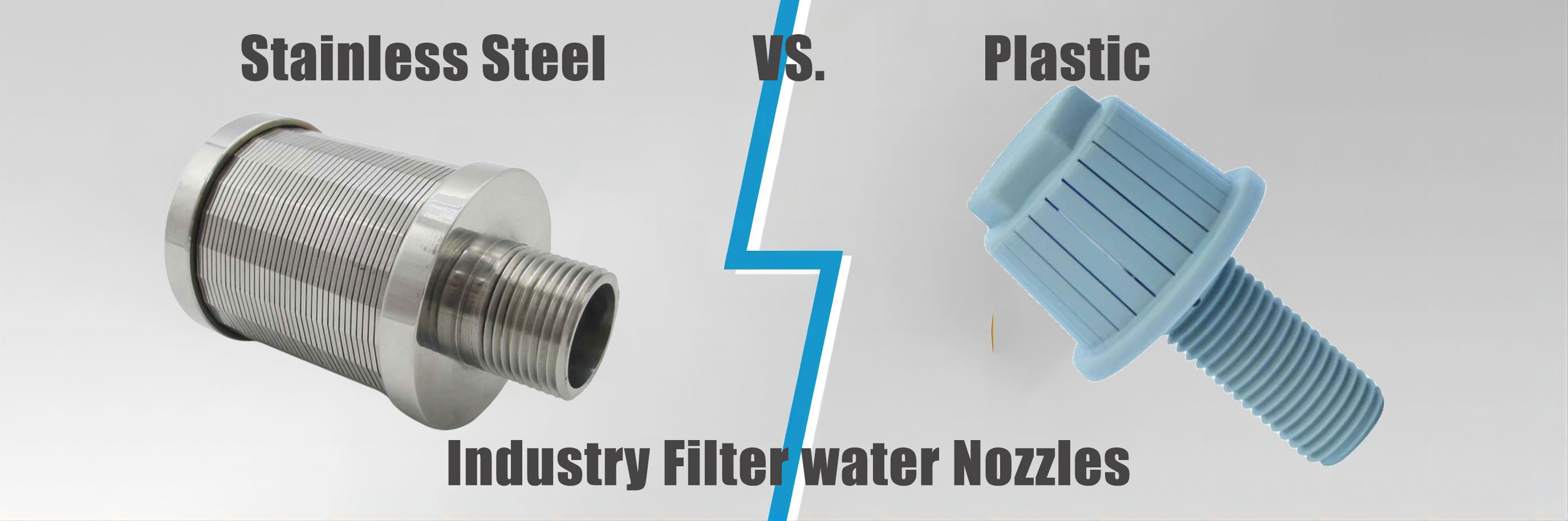

Selecting the ideal material for an industry water filter nozzle is pivotal for optimal performance and durability. The material's intrinsic qualities significantly impact the nozzle’s lifespan and functionality. Two primary contenders for industry water nozzle construction are stainless steel and plastic, each with distinct advantages based on specific application requirements.
Stainless steel, comprising iron, carbon, and alloying elements like chromium and nickel, offers remarkable hardness and resistance to erosion and chemical attacks. Variants like 304, 316, and 316L cater to diverse needs.
Stainless steel thrives in high-temperature environments, enduring up to 500°C effectively.
While robust, stainless steel exhibits varying corrosion resistance:
AISI 303: Good against atmospheric exposure and certain chemicals but weak against chlorides and high temperatures.
AISI 316/316L: Resistant to various salts and organic acids but susceptible to specific acids at elevated temperatures.
AISI 420/416: Suitable for drinkable water, steam, fuels, and alcohols.
In suitable environments, stainless steel nozzles offer cost-effective solutions.
Polymers like PVC, PP, and PVDF constitute thermoplastic nozzles, each with distinct temperature and chemical resistance properties. They are chosen based on compatibility with other components in the system.
Thermoplastics have low tolerance for high temperatures, leading to melting and deformation. Not recommended for high-temperature applications.
Plastics excel in resisting corrosion and aggressive environments without additional protective measures.
Plastic nozzles prove cost-effective in highly corrosive conditions but might not offer savings in extreme heat or abrasion scenarios.
Apart from stainless steel and plastic, various metals and exotic materials cater to unique application needs.
Proper nozzle use and regular maintenance significantly prolong nozzle life, preventing quality issues and profit loss.
For optimized filter performance, selecting nozzles designed to meet specific filter specifications is crucial. Options include material, mounting style, flow rate capacity, and tailpipes for air scour.
