wedge wire screen laterals for water processing

Product Code: 2690
Category:Header-Lateral
Material:stainless steel
Properties:wedge wire screen
Application:for water processing

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of wedge wire screen laterals for water processing

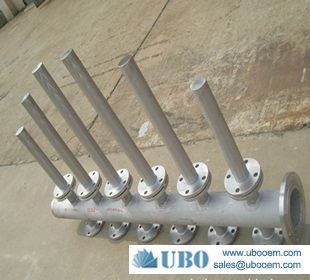

Wedge wire screen laterals for water processing promote even distribution while also avoiding flow/pressure concentrations. Each header lateral consists of a series of screen laterals connected to a central header to provide uniform flow within a vessel containing treatment media. Header laterals can be used to either distribute inflow or collect flow, depending on their location within a vessel.

We build Wedge wire screen lateral to your specifications for material (stainless steel options or alloys), wire and rod size and open area to accommodate your media retention and flow rate requirements.
No matter the final design, you can count on a header or hub lateral that will require minimal maintenance and provide exceptional durability.

wedge wire screen laterals for water processing

Advantage of wedge wire screen laterals for water processing

Profile Screen Laterals is made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

Application of Custom wedge wire lateral pipe

Wedge wire screen laterals used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

wedge wire screen laterals for water processing


Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the wedge wire screen laterals for water processing




Wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6m

Diameter

from 25mm to 1200mm.
End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of wedge wire screen laterals for water processing


wedge wire screen laterals for water processing
