wedge wire screen for the industrial wastewater treatment plants

Product Code: 2432
Category:Header-Lateral
Material:stainless steel 304,316,316l,320,Hastelloy C
Properties:wedge wire screen
Application:industrial wastewater treatment plants

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of wedge wire screen for the industrial wastewater treatment plants


Wedge wire screen is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.lateral pipe for resin trap is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Feature of wedge wire screen for the industrial wastewater treatment plants

1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

Application of wedge wire screen for the industrial wastewater treatment plants

They are widely used for water, oil and gas wells in the world. As China chief manufacturer and exporter, we export good quality water well screen to many countries. Main products cover bridge slot screen, wire wrapped well screen, stainless steel Johnson screen, water well screen, wedge wire screen, sieve bend screen, Johnson tube and sand control screen. In addition, we also offer perforated pipes and base pipes for well screen and Johnson screen.

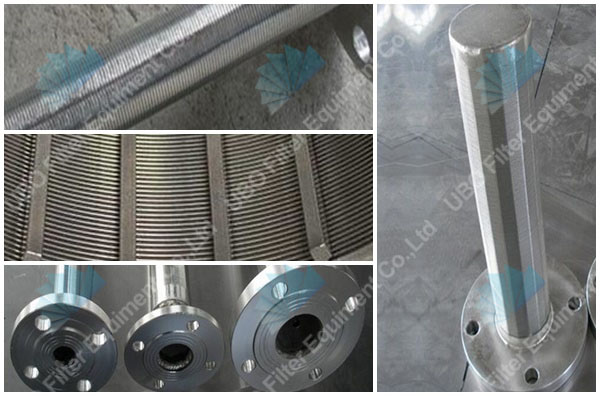

wedge wire screen for the industrial wastewater treatment plants

Specification of the wedge wire screen for the industrial wastewater treatment plants


Material:stainless steel 304,316,316l,320,Hastelloy C

Wire diameter:  1.5X2mm, 2x3mm, 3x6mm

Length: MAX 6 meters.
Diameter:MAX 280mm

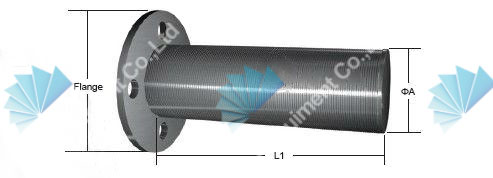

wedge wire screen for the industrial wastewater treatment plants



Type

Slots mm

ΦA

Flange DN

L1mm

AM1

0.05, 0.1, 0.2  0.3, 0.5, 1.0

45,57,76,89,108,

133, 159, 219

40,50,65,80,

100,125,150,

200

442,496,547,

600,654,705,

758,812,863,

916,970,1021,

1074,1128,1179,

1232, 1286



Production And Sales of wedge wire screen for the industrial wastewater treatment plants

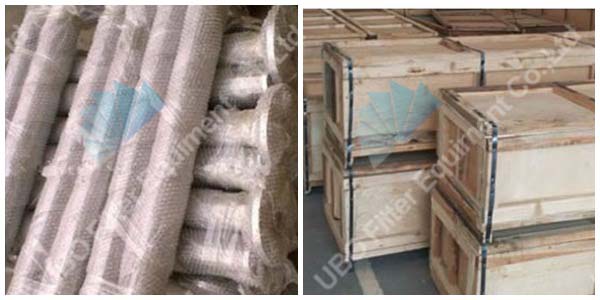

packing
