v wire jacketed screen for metallurgical industry

Product Code: 2774
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:paper machines, recycling, dewatering, debris removal, fiber fractionalization, drying

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of v wire jacketed screen for metallurgical industry

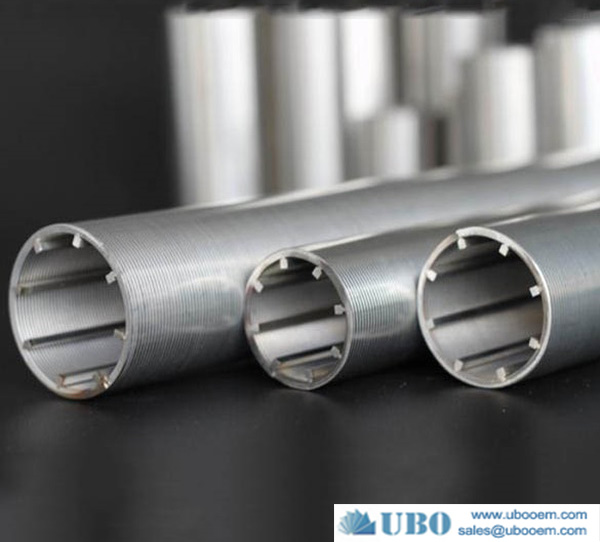

v wire jacketed screen for metallurgical industry, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

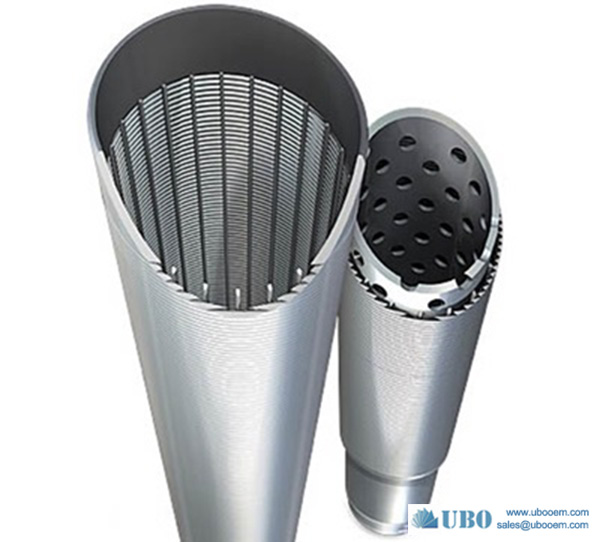

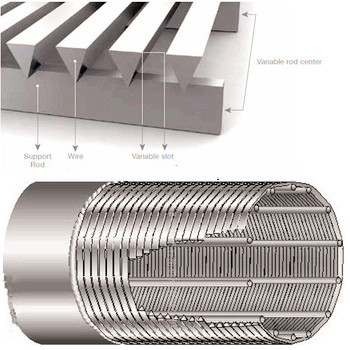

As we all know, the  wire wrap V shaped screen pipe is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire. The support wire can be triangular wire, round wire and trapezoid wire.

v wire jacketed screen for metallurgical industry

Advantages of v wire jacketed screen for metallurgical industry

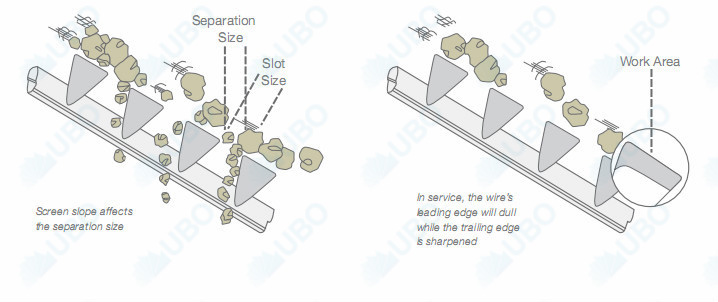

The wedge wire screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure

Features of v wire jacketed screen for metallurgical industry

-- Accurate filtering performance.
-- High efficiency.
-- Narrow slot openings.
-- Normal or high grade type for choice.
-- Various edge types.
-- Wide range of diameters for choice.
-- Special sizes can be customized.
-- Economical but high grade.
-- Corrosion resistance.
-- Rust resistance.
-- Long service life and durable

Applications of v wire jacketed screen for metallurgical industry

This screen pipe is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chemical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.



Specification of the v wire jacketed screen for metallurgical industry


v wire jacketed screen for metallurgical industry

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

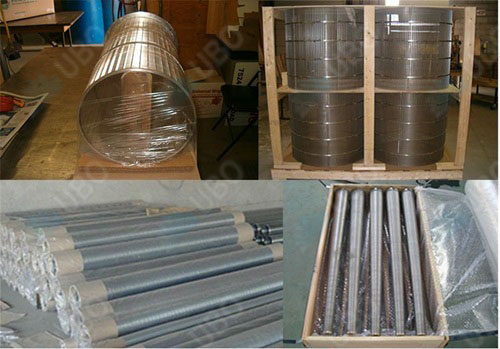

Production And Sales of v wire jacketed screen for metallurgical industry
