Wedge wire centrifuge basket

Product Code: 2268
Category:Centrifuge Screens&Baskets
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:centrifuge screens and baskets
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order

Description of Wedge wire centrifuge basket

    The sieve screen basket liners which require external supports and also self-supporting balanced baskets for the centrifuge manufacturers. These wedge wire screen baskets are more complex than the other types of screens requiring extra strength to withstand the stresses of centrifuge dryers. These baskets are typically used in mineral processing for coal, potash, salt, sand, pulp,paper and a variety of chemicals. They are also used for refuse removal from oil and gas drillers.

Uses for Wedge wire centrifuge basket:

widely used in mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt industry with mesh.

Advantages for Wedge wire centrifuge basket:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

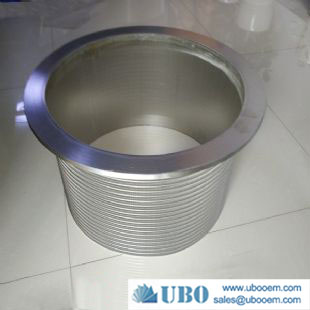

Wedge wire centrifuge basket

Specification of the Wedge wire centrifuge basket

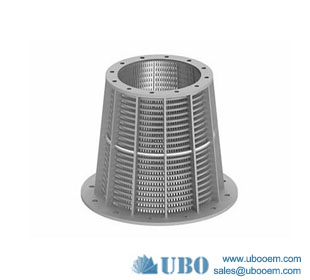

V-wire separator screening basket
Material SUS 316L
Width of slot 0.1mm
Size Min Max
Inside Diameter 305mm 1900mm
Height of screen 267mm 1650mm
Thickness of screen plate 5mm 10mm

Production And Sales of Wedge wire centrifuge basket

Wedge wire centrifuge basket
